Engineered for reliable performance in harsh environmental conditions, this heavy-duty 12U outdoor wall-mount equipment rack delivers expanded vertical capacity to isolate, power, and protect critical infrastructure. With a highly rigid welded frame, intelligent active thermal management, and a secure locking mechanism, it provides an ideal weatherproof enclosure for outdoor network distribution, industrial automation, and remote telecommunications hardware.
Key Features
- Expanded 12U Capacity: Features a 635mm frame height that provides ample vertical space to easily accommodate multi-layered deployments—such as combining a network switch, fiber termination panels, PoE midspans, and backup power supplies in a single secure footprint.

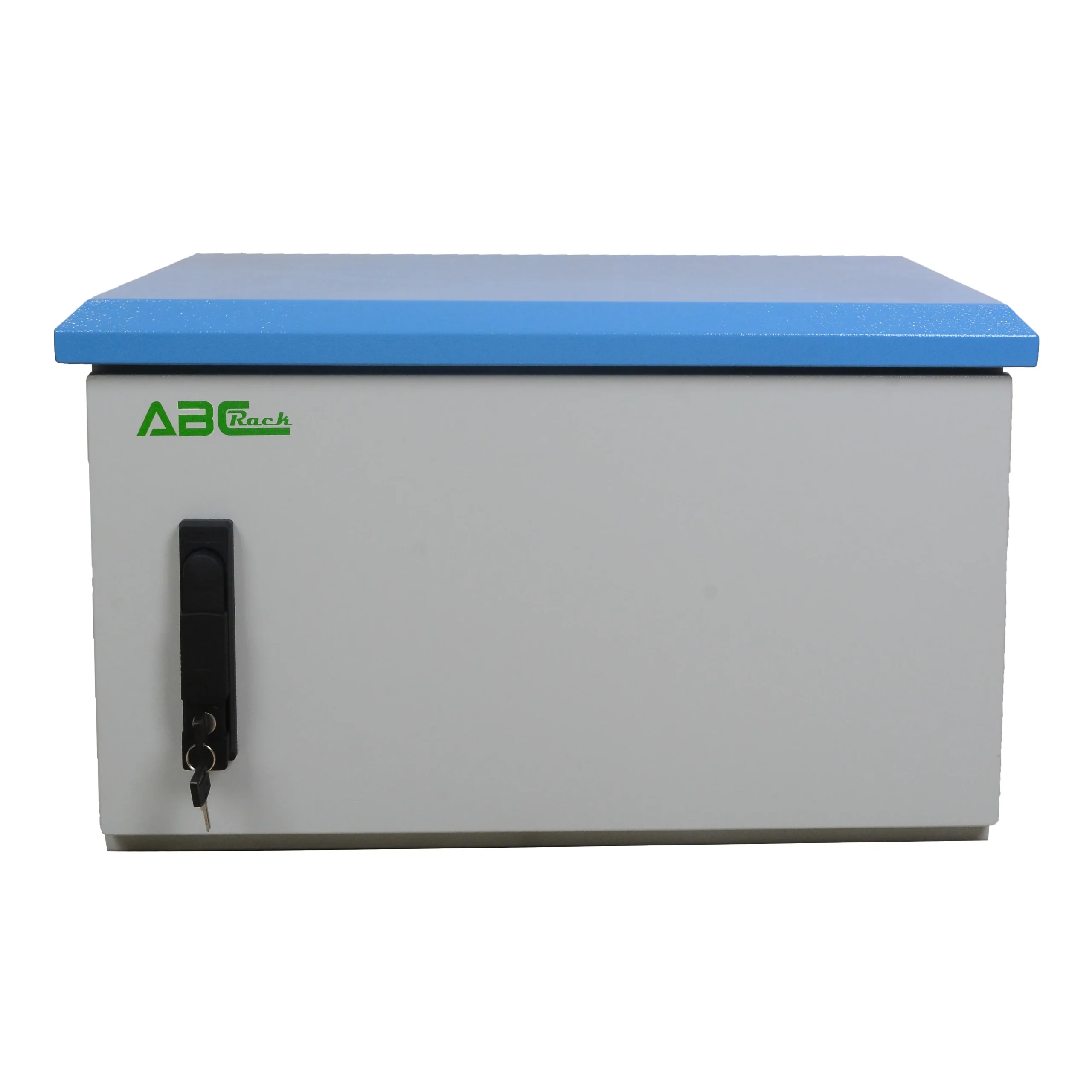

- Weatherproof & Reliable Structure: Built with a rugged, fully welded frame and a solid steel front door to create a highly reliable structure that seals out environmental dust, debris, and moisture.
- Smart Active Cooling: Equipped with an integrated fan temperature controller unit linked to two 4-inch, low-noise exhaust fans. The system automatically regulates internal airflow based on thermal demands, effectively mitigating solar heat load while keeping noise levels exceptionally low.
- Vandalism & Tamper Resistance: The heavy-duty front steel door is outfitted with a secure key lock mechanism, offering critical physical security and preventing unauthorized access in unmonitored or public outdoor spaces.

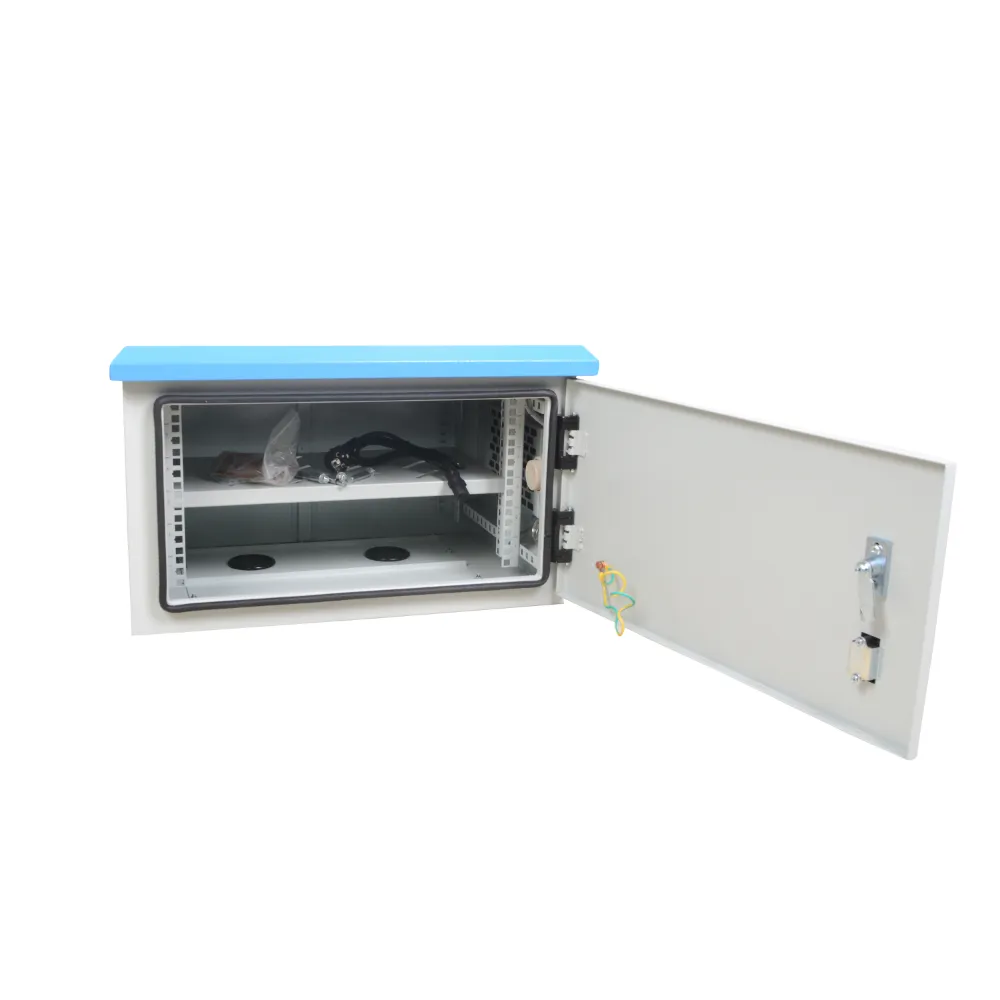

- Optimized Internal Organization: Includes a sturdy fixed internal shelf for non-rack mountable devices (like media converters or industrial power injectors) and four vertical panel mounts featuring clear unit (U) height indications for precise, fast equipment alignment.
Specifications
| Feature | Details |
| Rack Capacity | 12U |
| Dimensions | 600mm × 420mm × 635mm (Width × Depth × Height) |
| Type | Outdoor Wall-Mount Weatherproof Enclosure |
| Enclosure Structure | Heavy-duty welded steel frame, solid steel front door |
| Cooling System | 2 x 4-inch low-noise fans with integrated temperature controller unit |
| Security | Front door key lock |
| Internal Management | 1 x Fixed shelf, 4 x Panel mounts with unit indication markers |
Ideal For: High-capacity outdoor CCTV head-ends, remote telecom cells, traffic management systems, and industrial edge computing environments where maximum physical protection and automated climate control are required.
