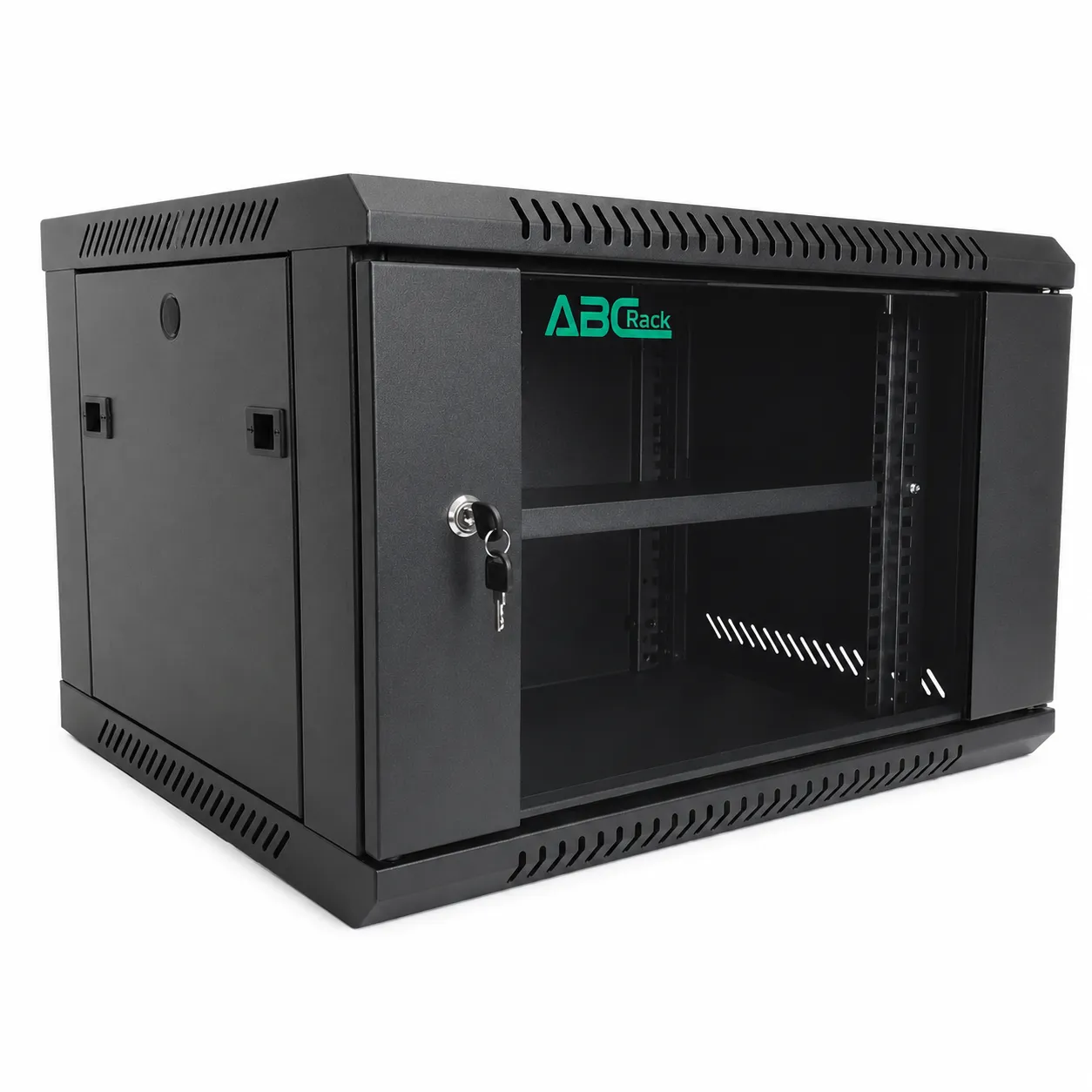

The 4U Wall Mount Network Cabinet Built from high-grade cold-rolled steel. This size is available in configuration: depth 450 mm (Model ABC-04U-60-45G).

For equipment visibility and security, the front door is made of 3 mm smoked safety tempered glass equipped with a key lock. The cabinet also features a solid steel rear panel and two removable side door panels for easy maintenance access. Designed to meet strict international industry criteria, it complies with ANSI/EIA, IEC, DIN, and ETSI standards. It ships disassembled.

Model & Dimensions

Technical Specifications & Standard Features

Build & Materials

• Type: Wall Mount Cabinet
• Material: High-grade cold-rolled steel
• Steel Thickness: Mounting profile: 1.5 mm; other components: 1.2 mm
• Max Loading Capacity: 60 KG
• Protection Rating: IP 20
• Body Color: RA9004 Black
• Surface Finish: Degreasing, acid pickling, phosphating (Parkerizing), pure water rinsing, electrostatic powder coating, and epoxy powder finish

Structure & Doors

• Main Structure Components: Frame, side panels, cable entry cover, mounting profiles, front door, and lock
• Front Door: 3 mm tempered safety glass (ESG), colored, equipped with a key lock

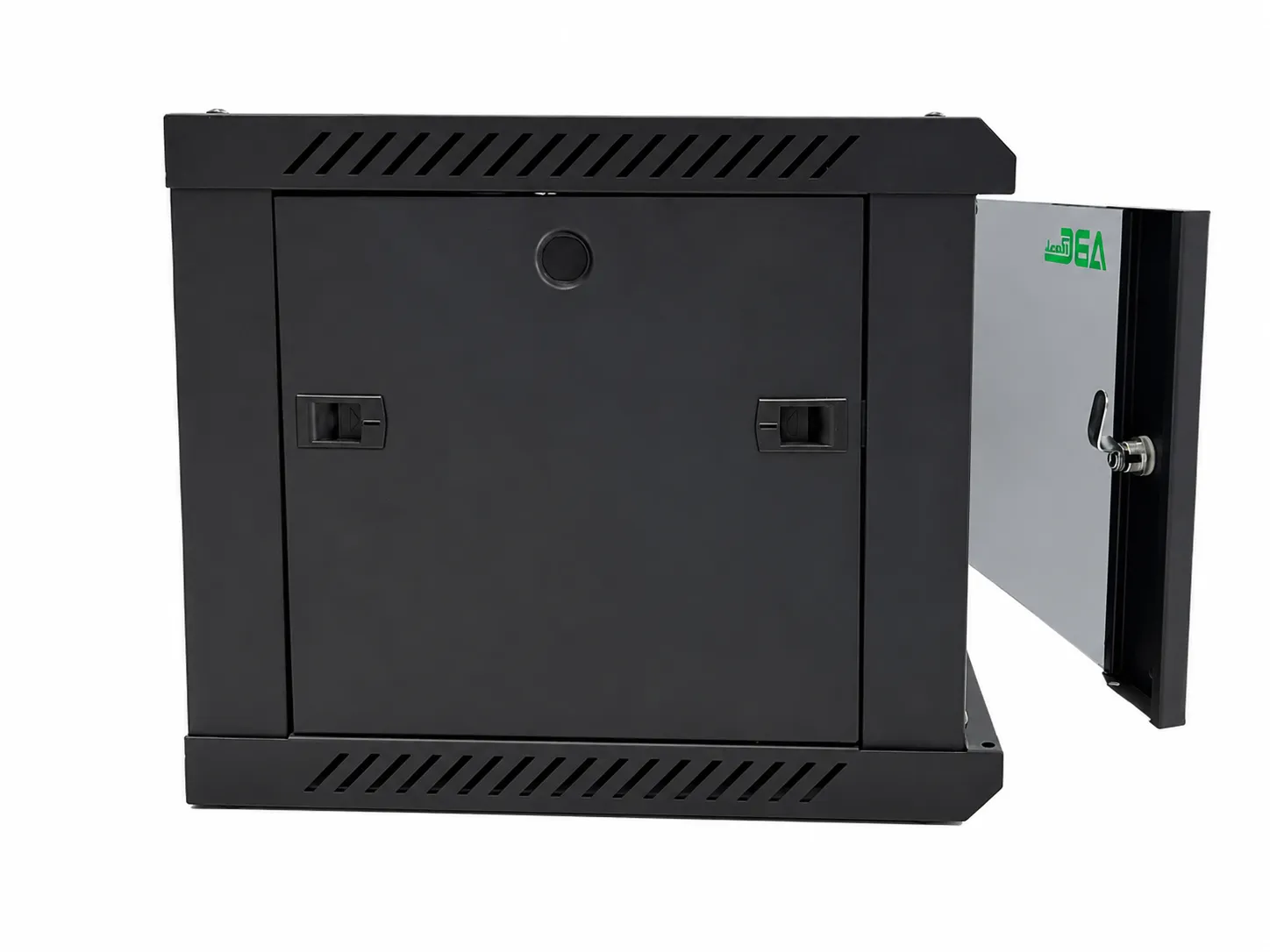

• Side Doors: 2 Side door panels

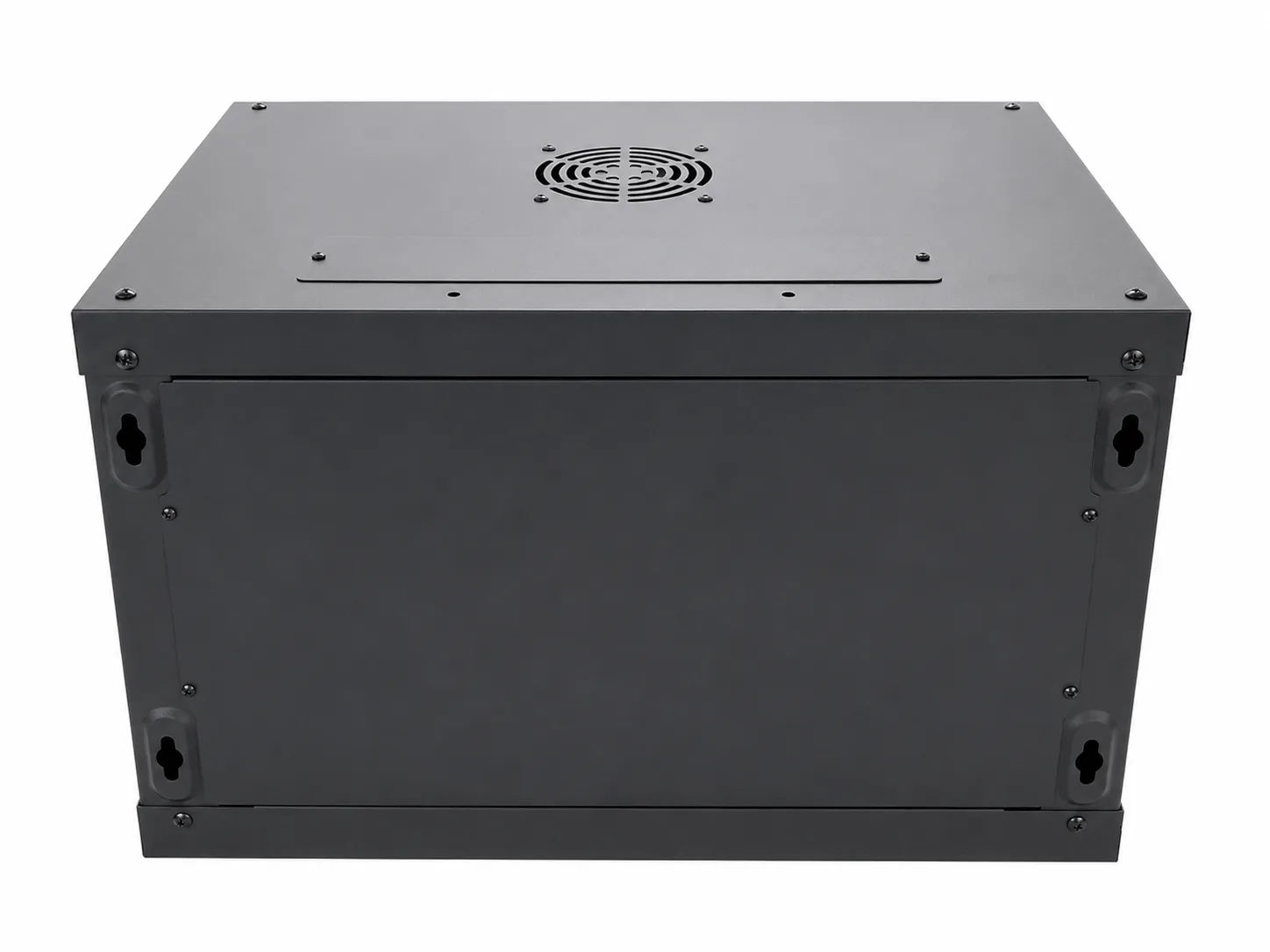

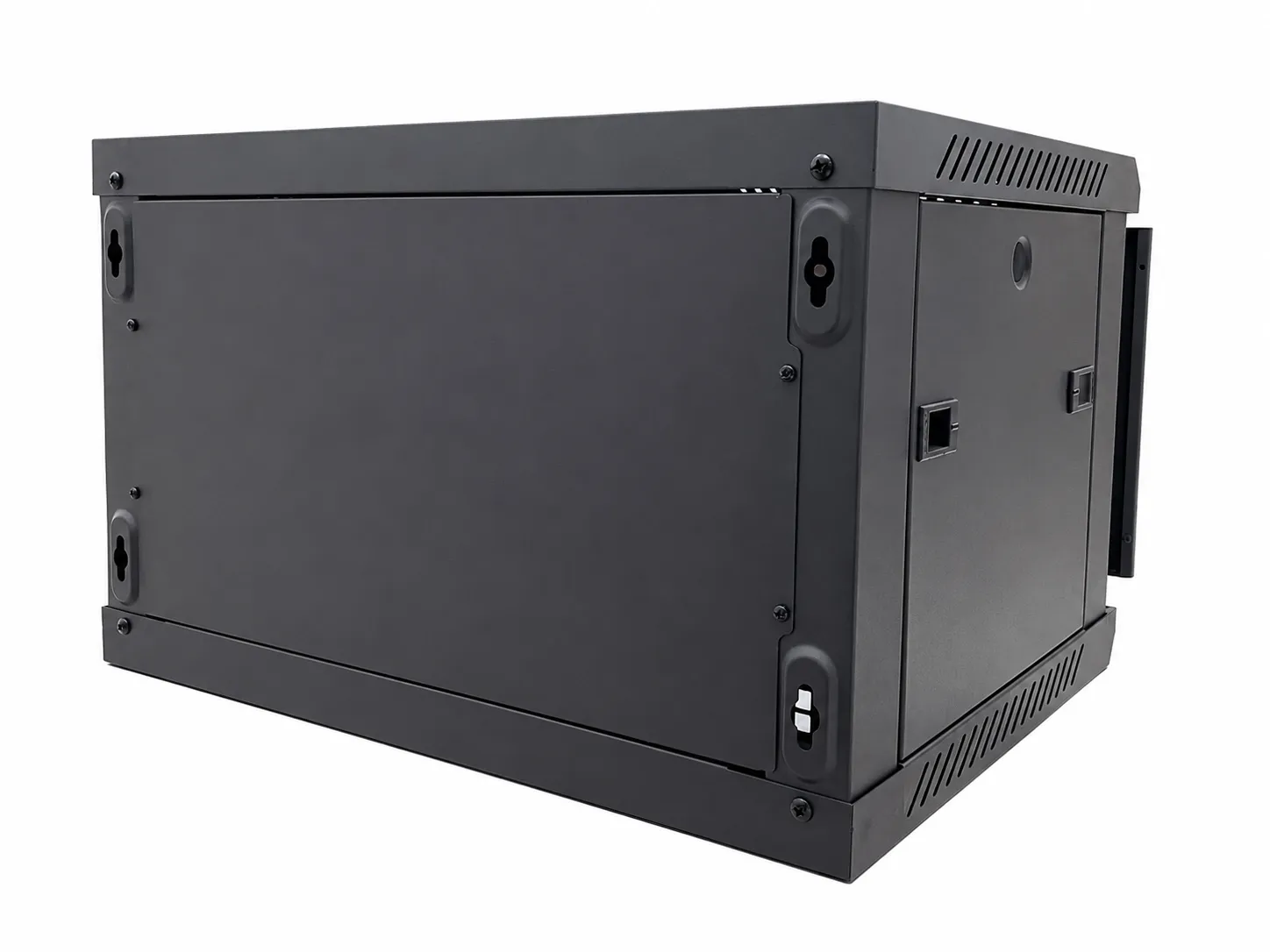

• Rear Panel: Steel rear panel
• Mounting Profiles: 4 Panel mount rails featuring unit (U) height indications

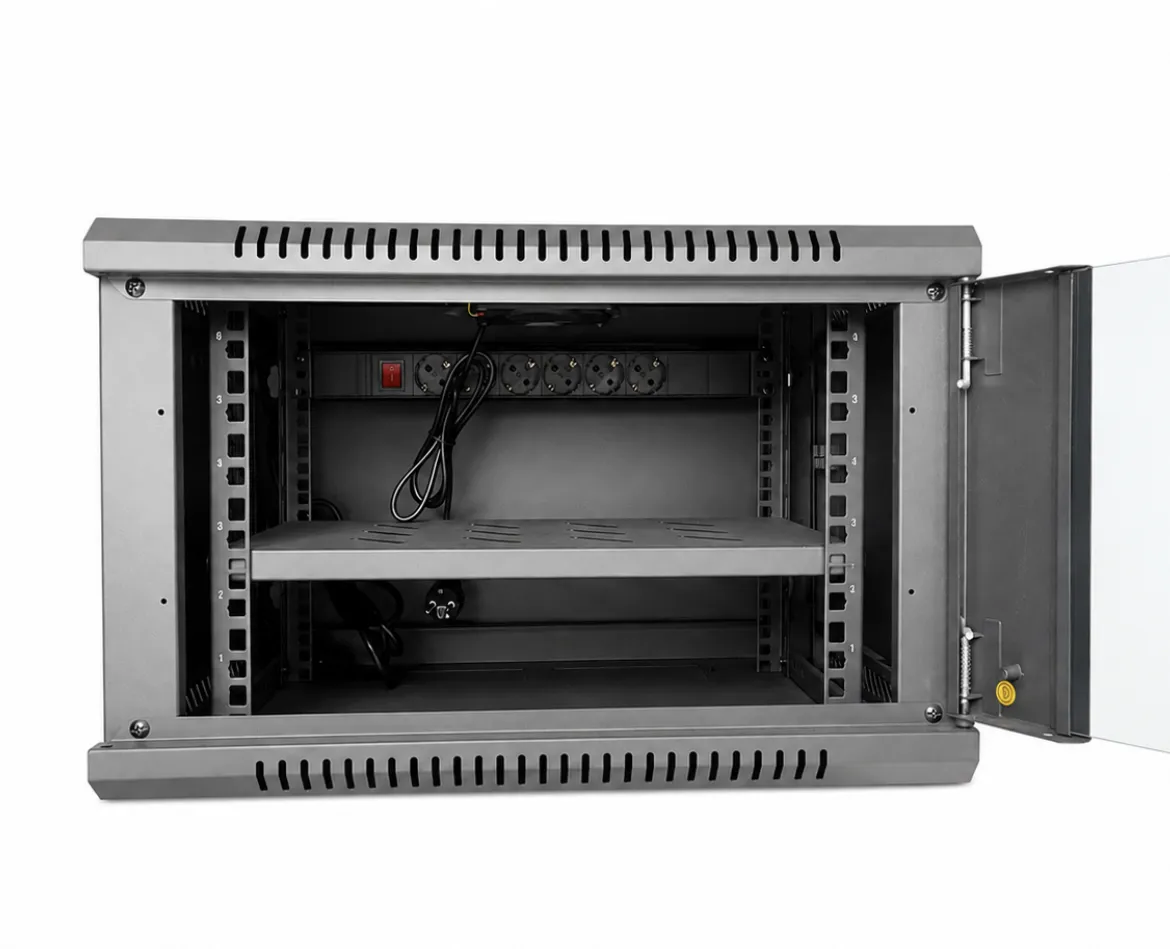

Included Accessories

• Cooling System 4 inch low-noise fan integrated into a vented top flush panel.
• Power Distribution: 19″ Horizontal Germany-type 4-way Power Distribution Unit (PDU)
• Fixed shelf
• packet of M6 cage nuts (Size: M6)
• small round lock

Industry Standards

• Compliance: Fully complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (PART 1), DIN41494 (PART 7), and ETSI standards.

Shipping

• Packing: Dis-assembled.
