The 9U Wall Mount Network Cabinet Built from high-grade cold-rolled steel. This size is available in different depths.

For equipment visibility and security, the front door is made of 3 mm tinted tempered safety glass equipped with a key lock. The cabinet also features a solid steel rear panel and two removable side door panels for easy maintenance access. Designed to meet strict international industry criteria, it complies with ANSI/EIA, IEC, DIN, and ETSI standards. It ships disassembled.

Model & Dimensions

Technical Specifications & Standard Features

Build & Materials

• Type: Wall Mount Equipment Cabinet
• Material: High-grade cold-rolled steel
• Steel Thickness: Mounting profile: 1.5 mm; other components: 1.2 mm
• Max Loading Capacity: 75 KG
• Protection Rating: IP 20
• Body Color: RA9004 Black
• Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting, and epoxy powder coating

Structure & Doors

• Main Structure Components: Frame, side panels, cable entry cover, mounting profiles, front door, and lock
• Front Door: 3 mm tempered safety glass (ESG), colored, equipped with a key lock
• Side Doors: 2 Side door panels

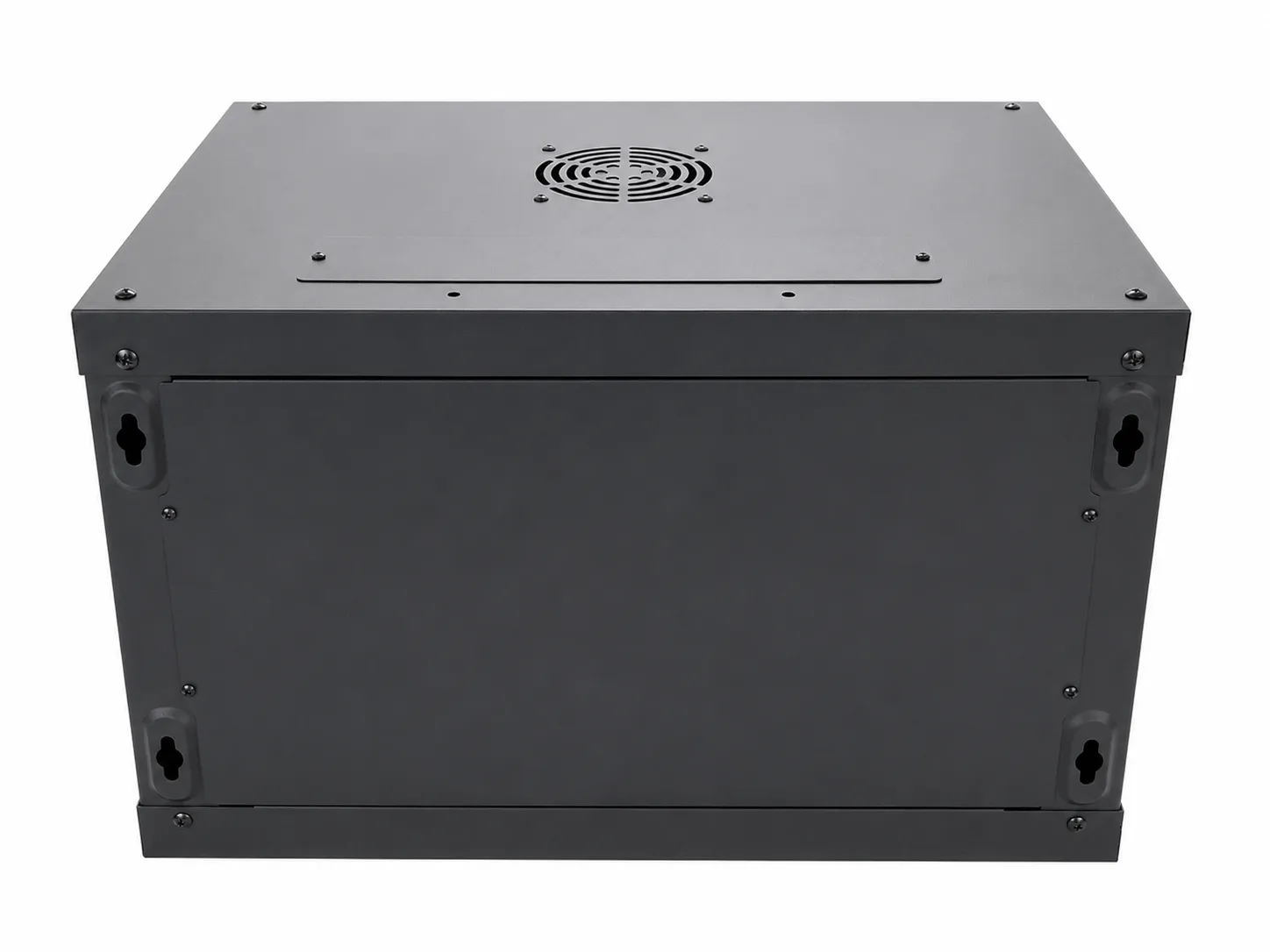

• Rear Panel: Steel rear panel
• Mounting Profiles: 4 Panel mount rails featuring unit (U) height indications

Included Accessories & Hardware

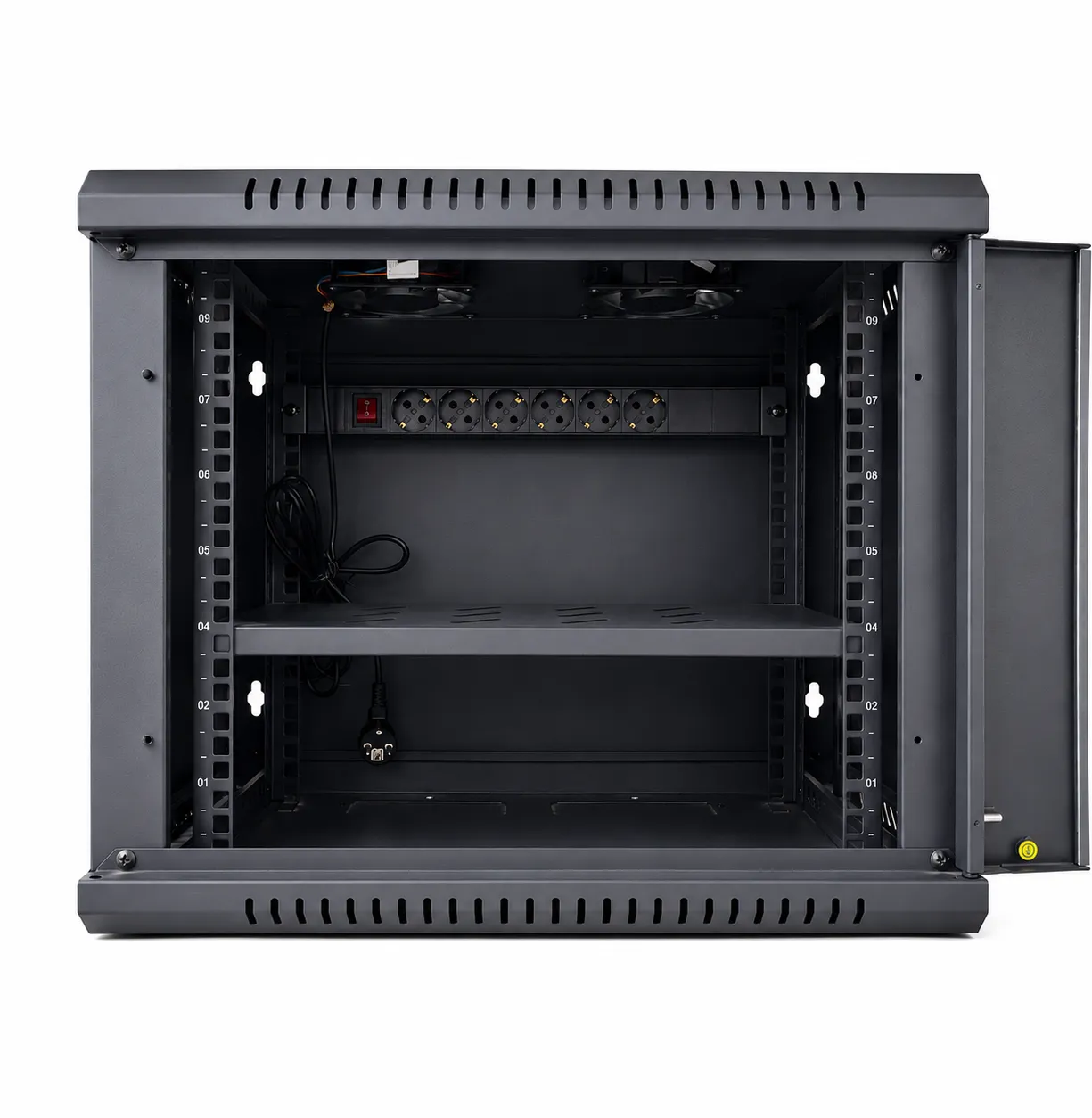

• Cooling System 4 inch low-noise fans integrated into the panel
  • For the 450 mm depth Cabinet (ABC-09U-60-45G): one 4 inch low-noise fan integrated into a vented top flush panel.
  • For the 600 mm depth Cabinet (ABC-09U-60-60G): two 4 inch low-noise fans integrated into the panel.
• Power Distribution: 19″ Horizontal Germany-type 6-way Power Distribution Unit (PDU)
• Fixed shelf
• packet of M6 cage nuts (Size: M6)
• Small round lock

Industry Standards

• Compliance: Fully complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (PART 1), DIN41494 (PART 7), and ETSI standards.

Shipping

• Packing: Dis-assembled.
