The new premium ABC27-68-AL floor-standing network cabinet introduces a modern, high-stability aluminum architectural layout to the product line. Explicitly engineered for elite networking environments, edge computing nodes, and corporate structured cabling hubs, this cabinet transitions from traditional cold-rolled steel frames to high-performance, lightweight extruded aluminum alloy. Standing at a standard profile height of 1388 mm with a 600 mm width and 800 mm depth, it balances advanced engineering with efficient logistical deployment.

Mechanical Design & Advanced Material Integrity

• Frame Architecture: Constructed from ultra-durable, heavy-duty 2 mm Aluminum Alloy 6063-T5. This high-grade material delivers exceptional structural rigidity and corrosion resistance while noticeably optimizing overall enclosure weight.
• Load Rating: Structurally rated for a maximum static load capacity of 650 KG. The specialized alloy frame ensures total operational stability under full payload deployments of enterprise patch panels, active switch arrays, and communication hardware.
• Logistical Optimization: Ships completely Flat-Packed, designed for streamlined freight transport, reduced logistics footprints, and rapid, straightforward on-site field assembly.
• Ingress Protection: Built to IP 20 specifications, ensuring active workplace protection against objects larger than 12.5 mm while enabling free flow of internal cooling currents.

Thermal Management & Optical Characteristics

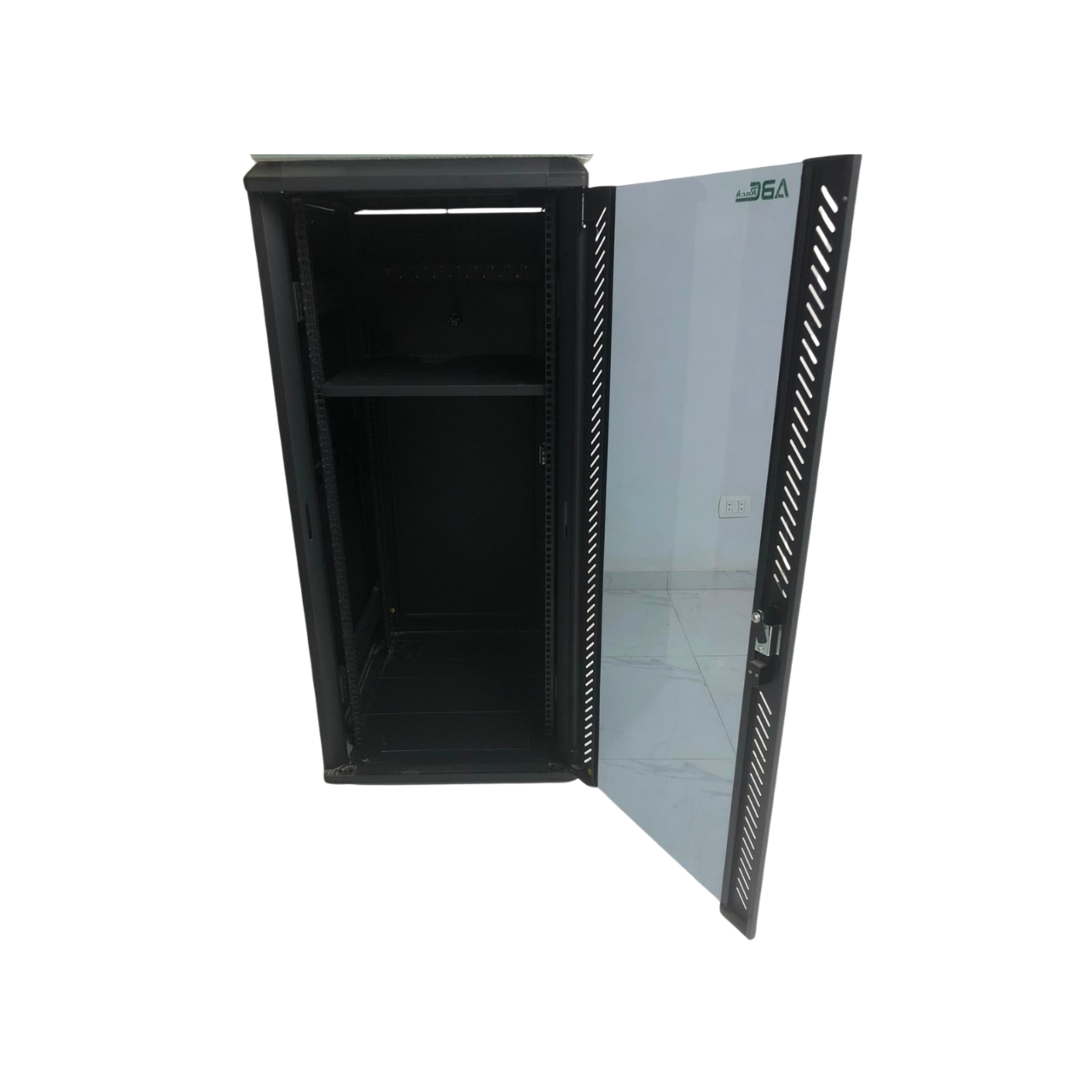

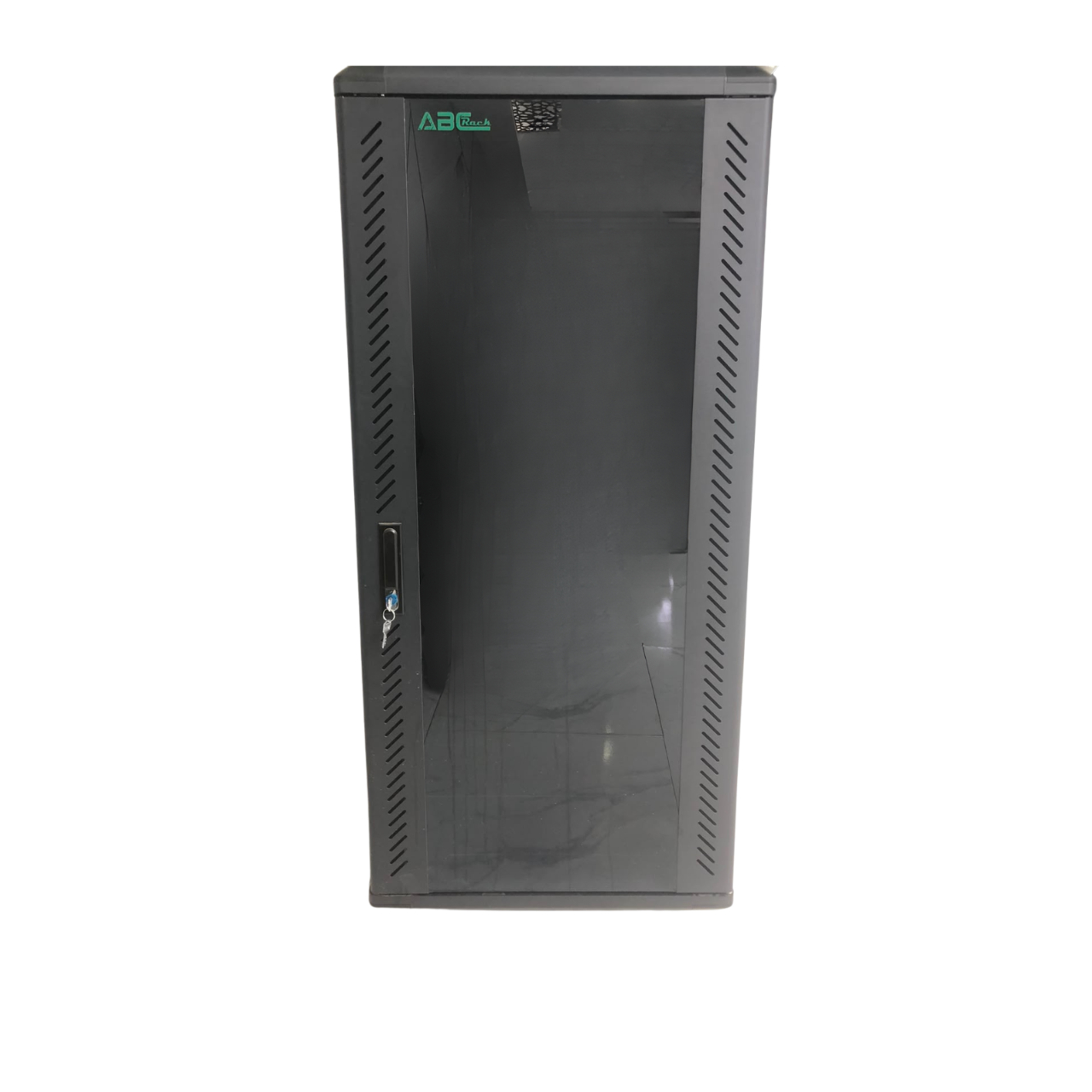

• Front Door Configuration: Features a contemporary, lockable Vented Glass Front Door featuring integrated Tempered Safety Glass (ESG) 3 mm colored panels. This design yields excellent structural durability, high impact resistance, and over 90% visible light transmittance for immediate, unhindered hardware observation while filtering incoming dust.

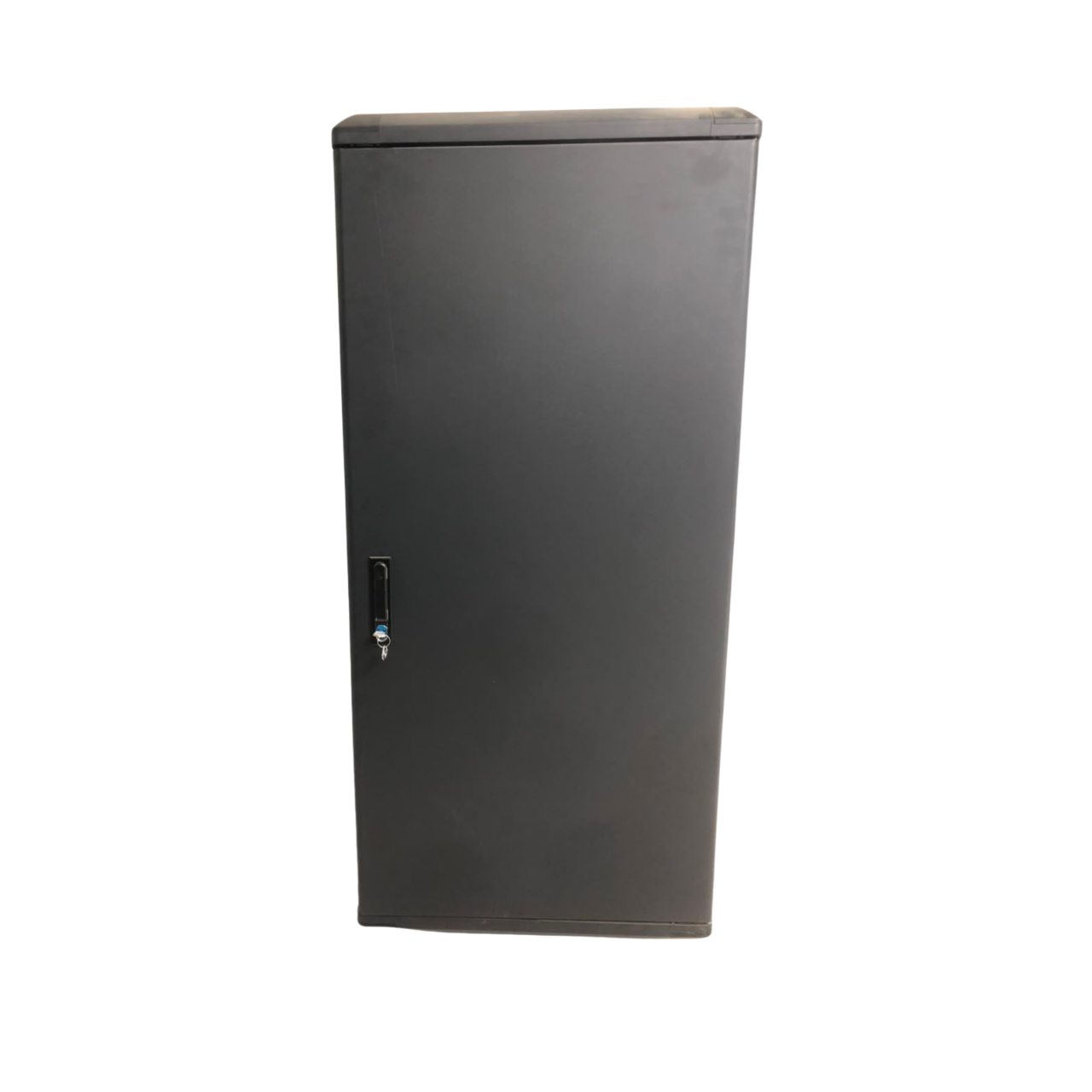

• Rear Door Configuration: Outfitted with a heavy-duty Solid Steel Rear Door with integrated dual key locks, providing premium physical protection, securing backend infrastructure cabling, and minimizing unauthorized access points.

Cable Routing & Comprehensive Accessory Package

• Cable Entry Infrastructure: Engineered with prefabricated top and bottom cable entry pathways to route dense configurations of fiber trunks and copper runs cleanly into the cabinet core.
• Active Cooling Assembly: Pre-installed with a high-capacity 4-Fan Tray Assembly built directly into the top roof plate to provide constant vertical thermal exhaust and active heat extraction.
• Integrated Power Distribution: Outfitted with a standard 19″ horizontally mounted 8-Way Germany-Type Power Distribution Unit (PDU) with an illuminated master power toggle.
• Full Installation Hardware Package: Every unit includes 1 high-strength fixed equipment shelf, 4 multi-directional casters, 4 adjustable leveling alignment feet, and a full complete kit of mounting cage nuts and structural assembly screws.

Product Matrix & Dimensional Layout
