The 12U Wall Mount Network Cabinet offers expanded vertical capacity, making it an excellent choice for growing IT frameworks and core network switches. This size is available in different depths.

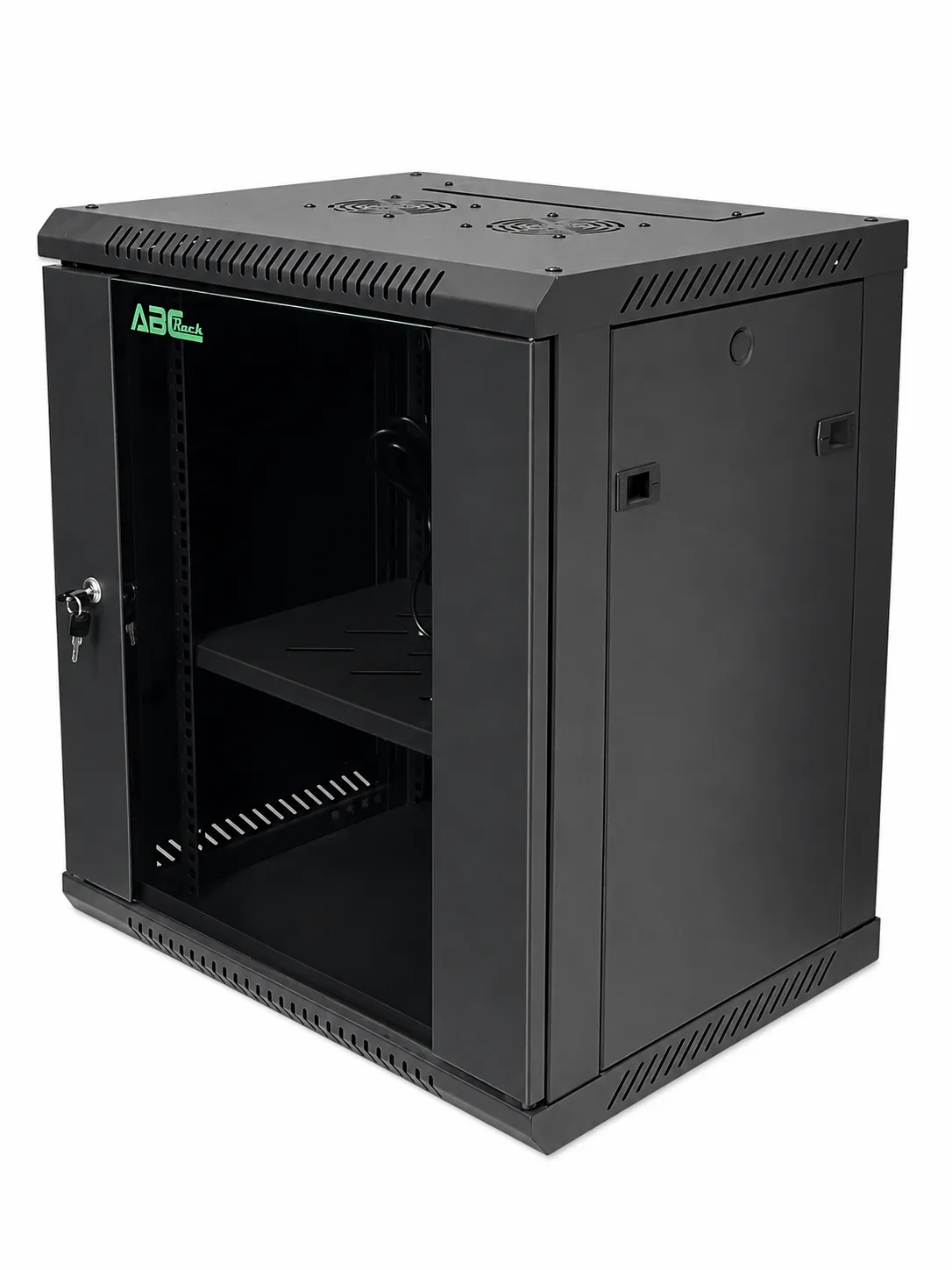

For equipment visibility and security, the front door is made of 3 mm tinted tempered safety glass equipped with a key lock. The cabinet also features a solid steel rear panel and two removable side door panels for easy maintenance access. Designed to meet strict international industry criteria, it complies with ANSI/EIA, IEC, DIN, and ETSI standards. It ships disassembled.

Model & Dimensions

Technical Specifications & Standard Features

Build & Materials

• Type: Wall Mount Equipment Cabinet
• Material: High-grade cold-rolled steel
• Steel Thickness: Mounting profile: 1.5 mm; other components: 1.2 mm
• Max Loading Capacity: 75 KG
• Protection Rating: IP 20
• Body Color: RA9004 Black
• Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting, and epoxy powder coating

Structure & Doors

• Main Structure Components: Frame, side panels, cable entry cover, mounting profiles, front door, and lock

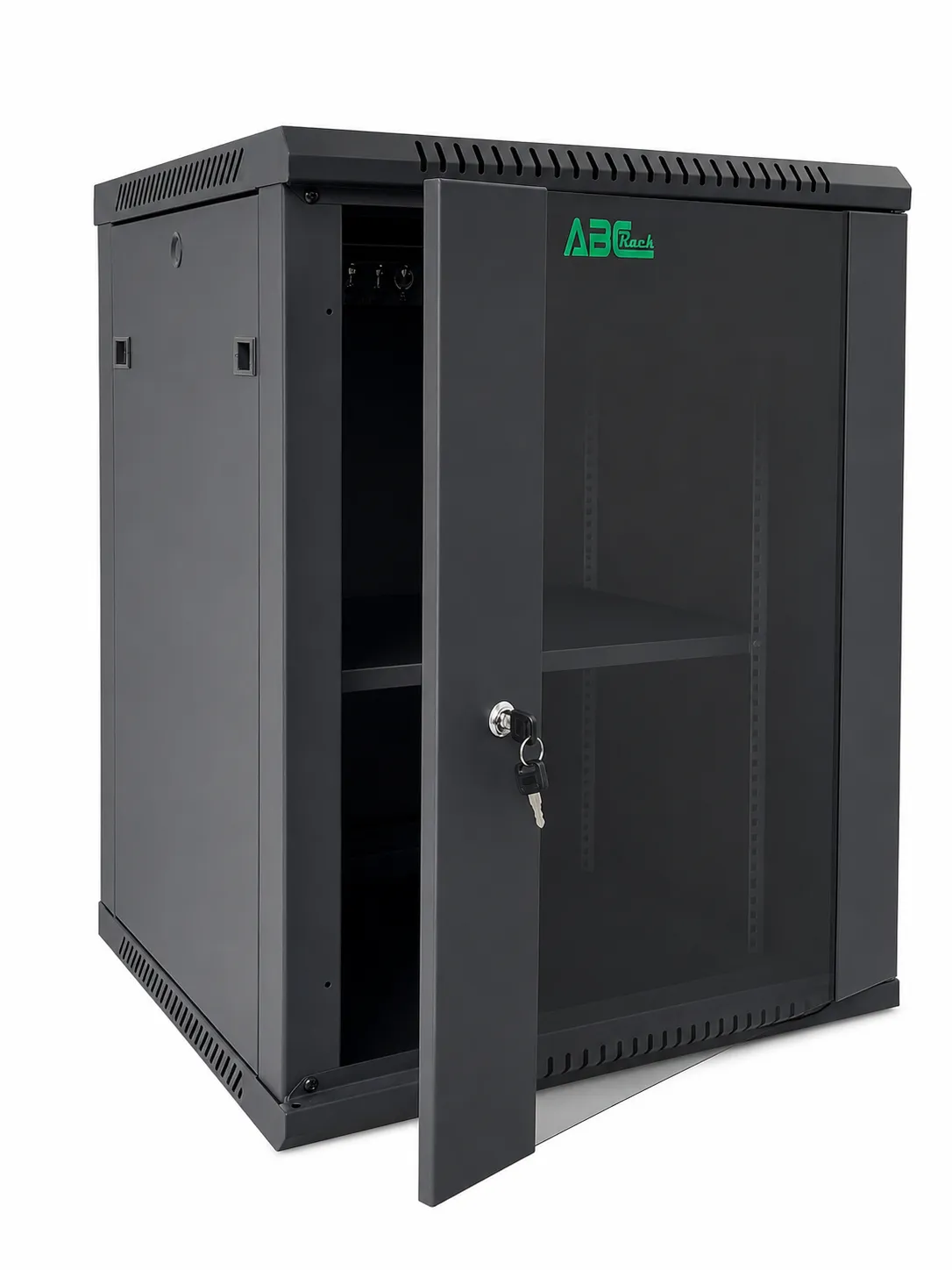

• Front Door: 3 mm tempered safety glass (ESG), colored, equipped with a key lock
• Side Doors: 2 x Side door panels

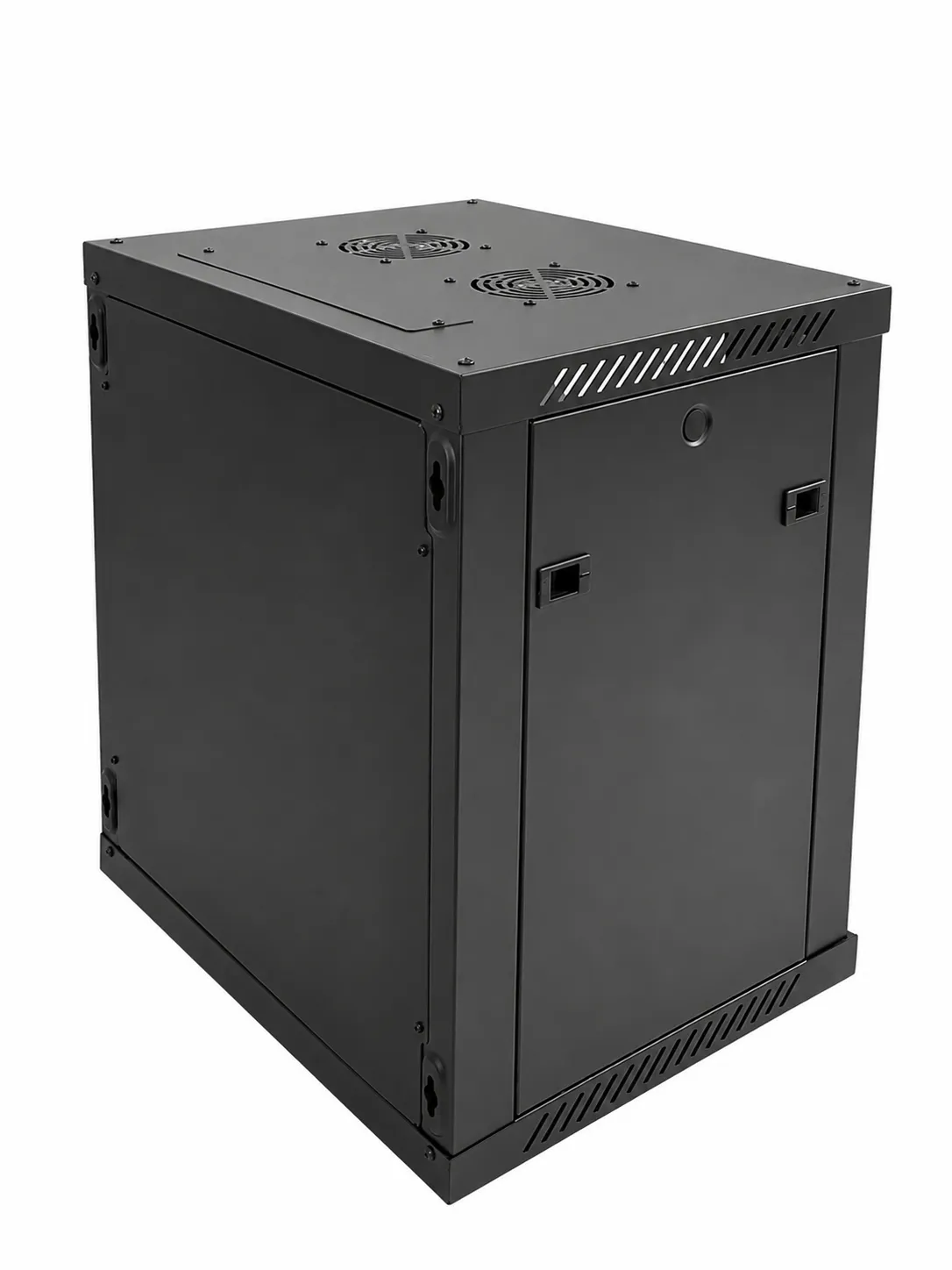

• Rear Panel: Steel rear panel
• Mounting Profiles: 4 Panel mount rails featuring unit (U) height indications

Included Accessories & Hardware

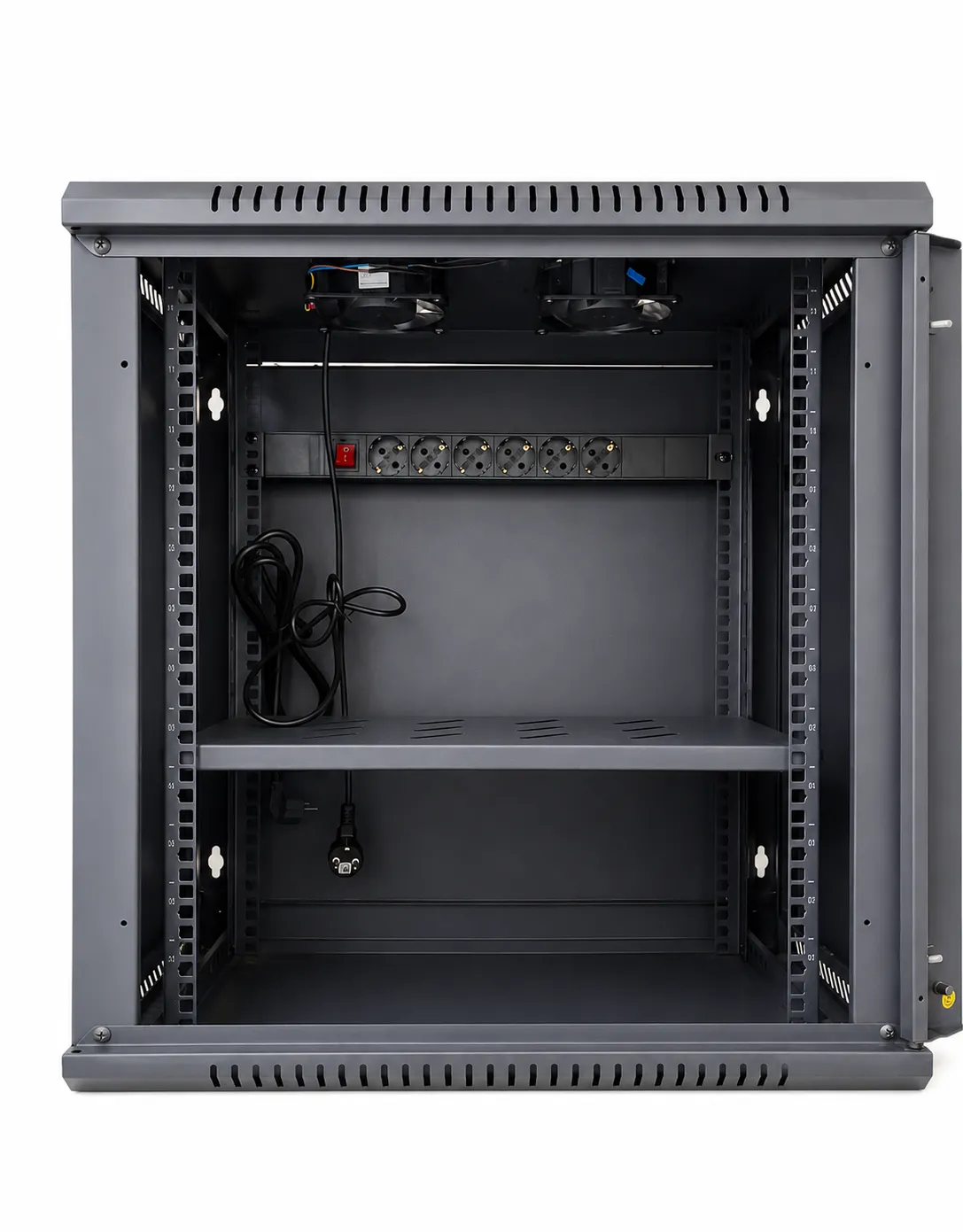

• Cooling System:
  • For the 450 mm depth Cabinet (ABC-12U-60-45G): one 4 inch low-noise fan integrated into a vented top flush panel.
  • For the 600 mm depth Cabinet (ABC-12U-60-60G): two 4 inch low-noise fans integrated into the panel.
• Power Distribution: 19″ Horizontal Germany-type 6-way Power Distribution Unit (PDU)
• Fixed shelf
• packet of M6 cage nuts (Size: M6)
• Small round lock

Industry Standards

• Compliance: Fully complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (PART 1), DIN41494 (PART 7), and ETSI standards.

Shipping

• Packing: Dis-assembled.
