The 42U floor-standing network cabinets are one of the sizes in the ABC Rack floor standing network cabinet series, specially designed for large-sized networks with a vertical height of 2055 mm.

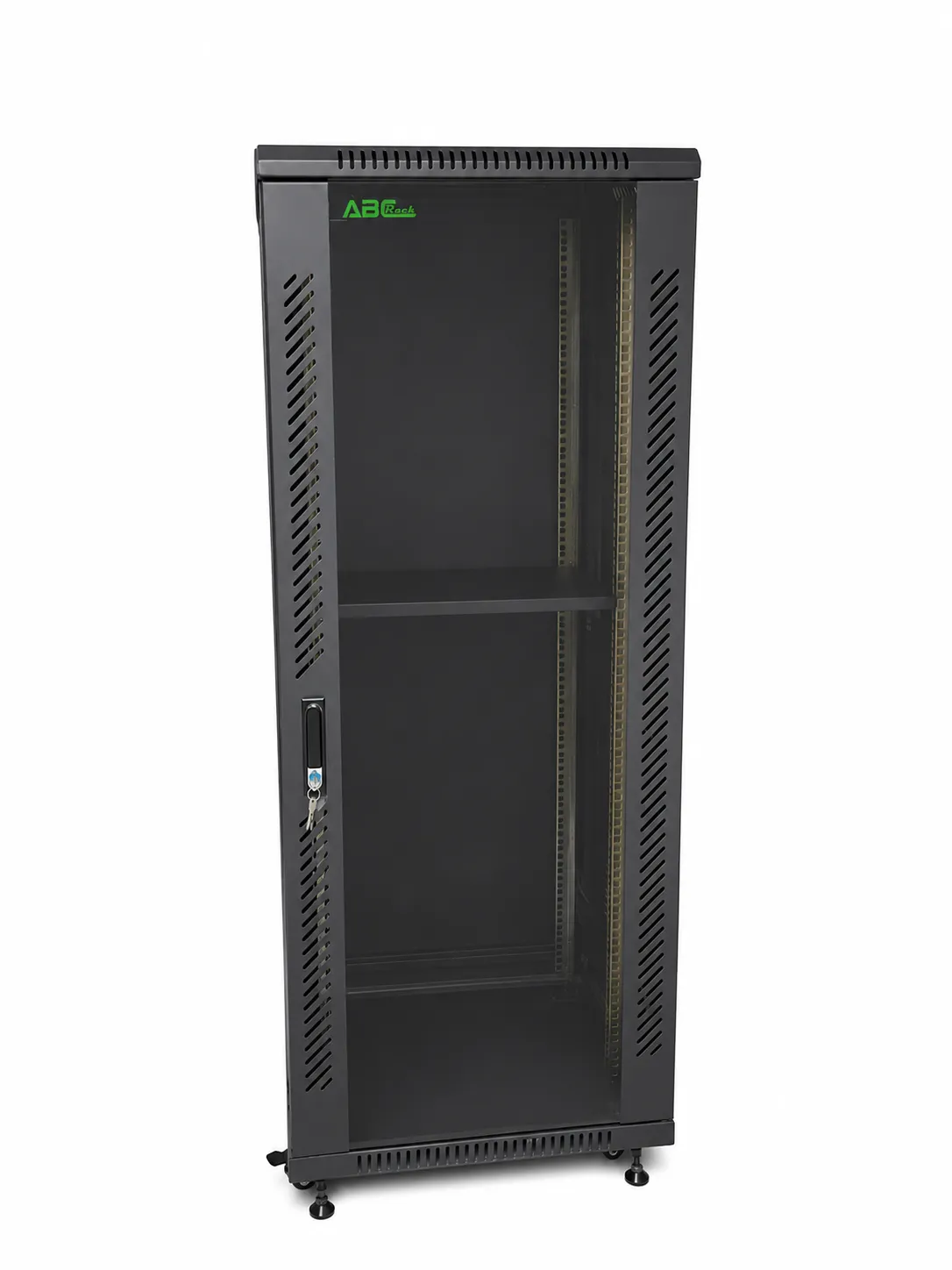

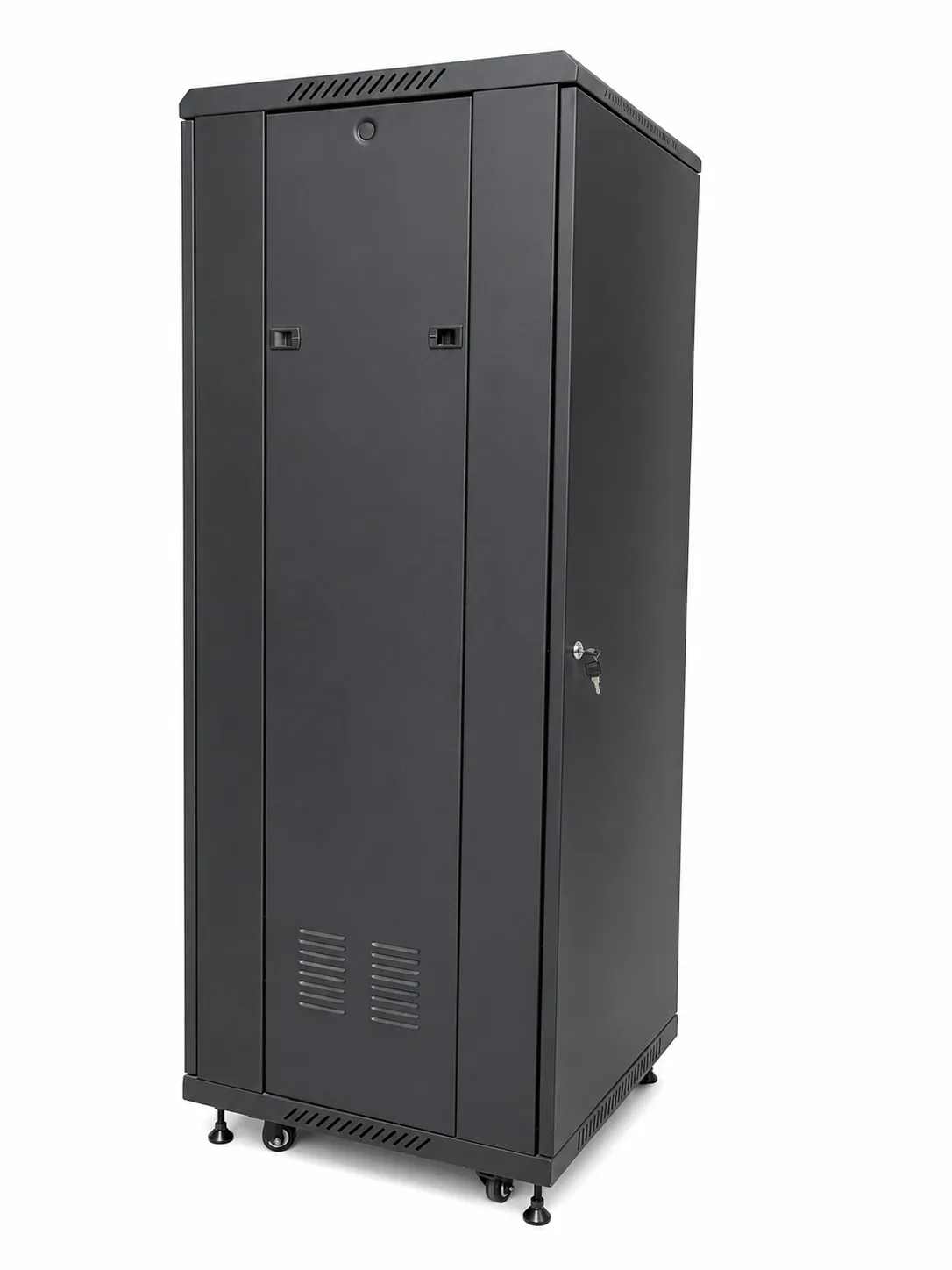

For equipment visibility and security, the front door is made of 3 mm smoked safety tempered glass equipped with a key lock. The cabinet also features a solid steel rear panel and two removable side door panels for easy maintenance access. Designed to meet strict international industry criteria, it complies with ANSI/EIA, IEC, DIN, and ETSI standards. It ships disassembled.
Model & Dimensions
| Model No. | Capacity | Width (mm) | Depth (mm) | Height (mm) |
| ABC-42U-60-60G-1D | 42U | 600 | 600 | 2055 |
| ABC-42U-60-80G-1D | 42U | 600 | 800 | 2055 |
| ABC-42U-60-100G-2D | 42U | 600 | 1000 | 2055 |
| ABC-42U-80-80G-2D | 42U | 800 | 800 | 2055 |
| ABC-42U-80-100G-2D | 42U | 800 | 1000 | 2055 |
Technical Specifications & Standard Features
Build & Materials
- Type: Floor Standing Network Cabinet
- Material: High-grade cold-rolled steel
- Steel Thickness: Mounting profile: 2.0 mm; other components: 1.5mm and 1.2 mm Protection Rating: IP 20
- Body Color: RA9004 Black
- Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting, and epoxy powder coating
Structure & Doors

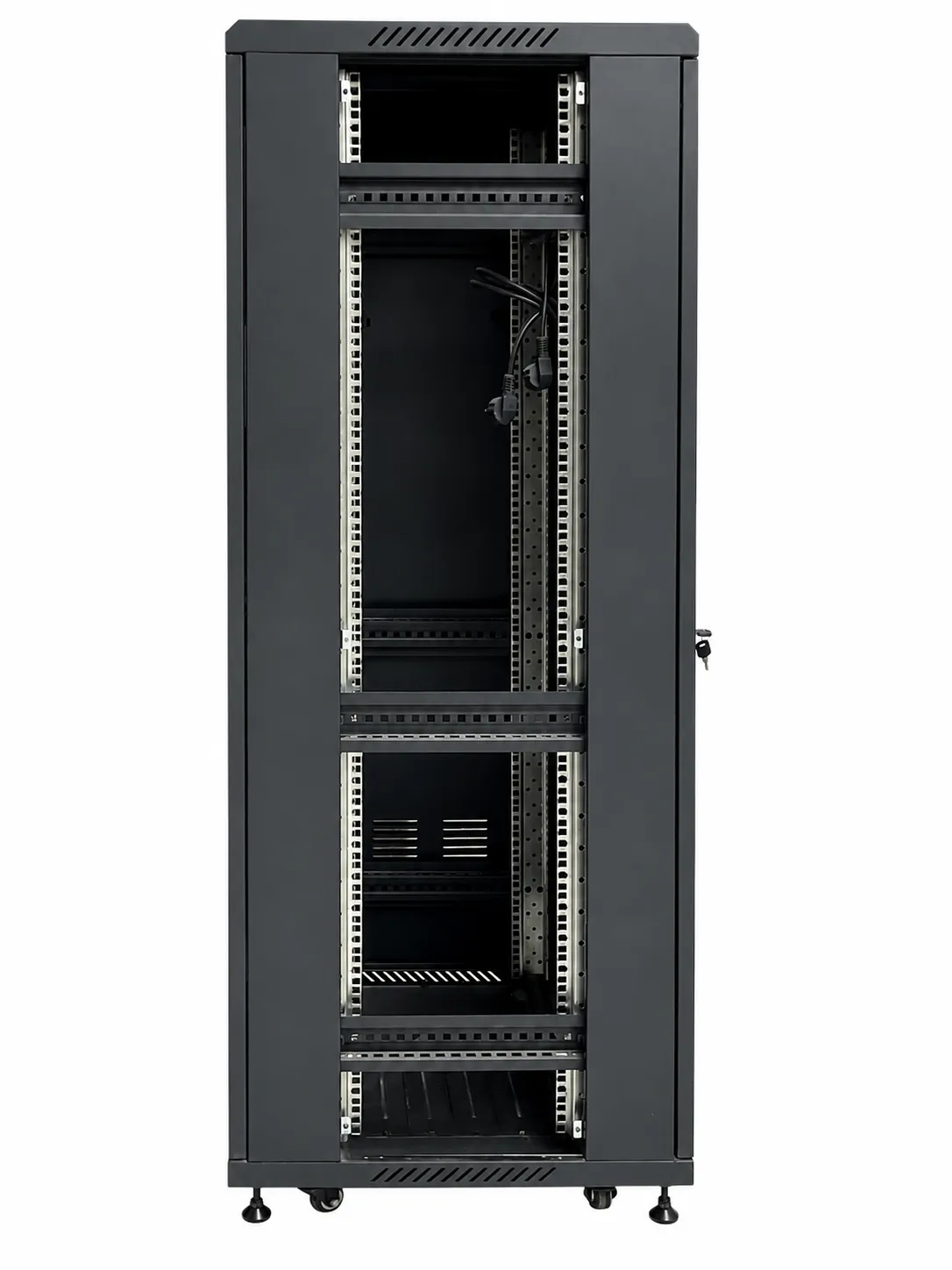

- Main Structure Components: Frame, side panels, cable entry cover, mounting profiles, front doors, rear doors and locks
- Doors:
- Models (ABC-42U-60-60G-1D, ABC-42U-60-80G-1D) provided with one front door of 3 mm tempered safety glass (ESG), colored, equipped with a key lock and steel rear door equipped with a key lock
- Models (ABC-42U-60-100G-2D, ABC-42U-80-80G-2D, ABC-42U-80-100G-2D) provided with two front door of 3 mm tempered safety glass (ESG), colored, equipped with a key lock and two steel rear door equipped with a key lock
- Side Doors: 2 Side door panels

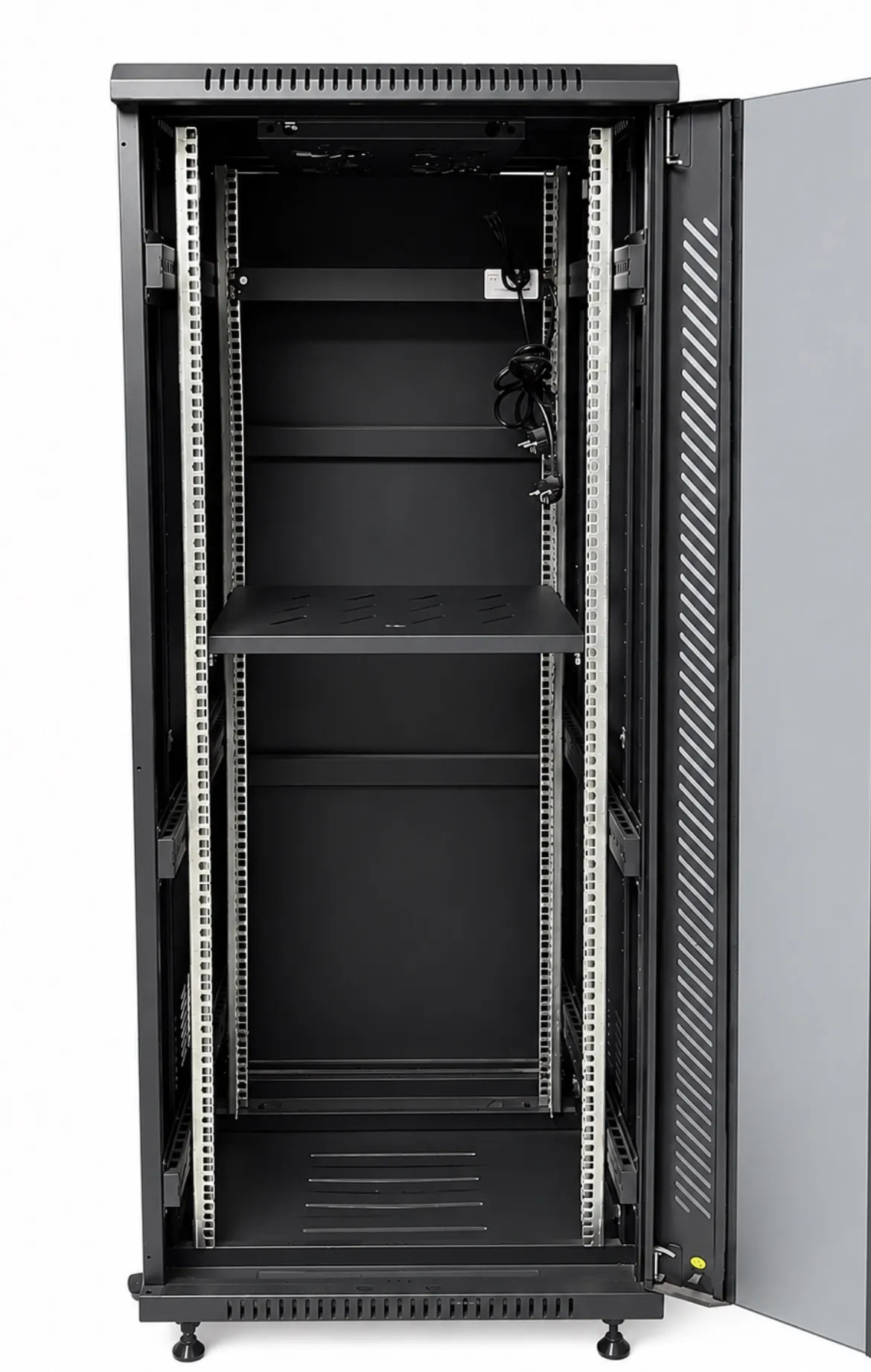

- Mounting Profiles: 4 Panel mount rails featuring unit (U) height indications
- Vertical Cable Organizer: models (ABC-42U-80-100G-2D, ABC-42U-80-80G-2D) provides 2 vertical cable organizers
Included Accessories
- Cooling System: includes 4 inch low-noise fans integrated into the panel.
- Power Distribution: 19″ Horizontal Germany-type 8-way Power Distribution Unit (PDU)
- Fixed shelf
- 1 packet of M6 cage nuts (Size: M6)
- Small round lock for side doors in models
(ABC-42U-60-100G-2D, ABC-42U-80-80G-2D, ABC-42U-80-100G-2D)
- Rotary zinc-alloy pull handle lock for the front door across all models.
- Leveling feet, and four casters equipped with brakes.
Industry Standards
- Compliance: Fully complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (PART 1), DIN41494 (PART 7), and ETSI standards.
Shipping Condition
- Packing: Dis-assembled.
