The 18U ground-standing network cabinets represent the smallest size in the ABC Rack floor standing network cabinet series. They are specially designed for small and medium-sized networks, featuring a low vertical height of 988 mm.

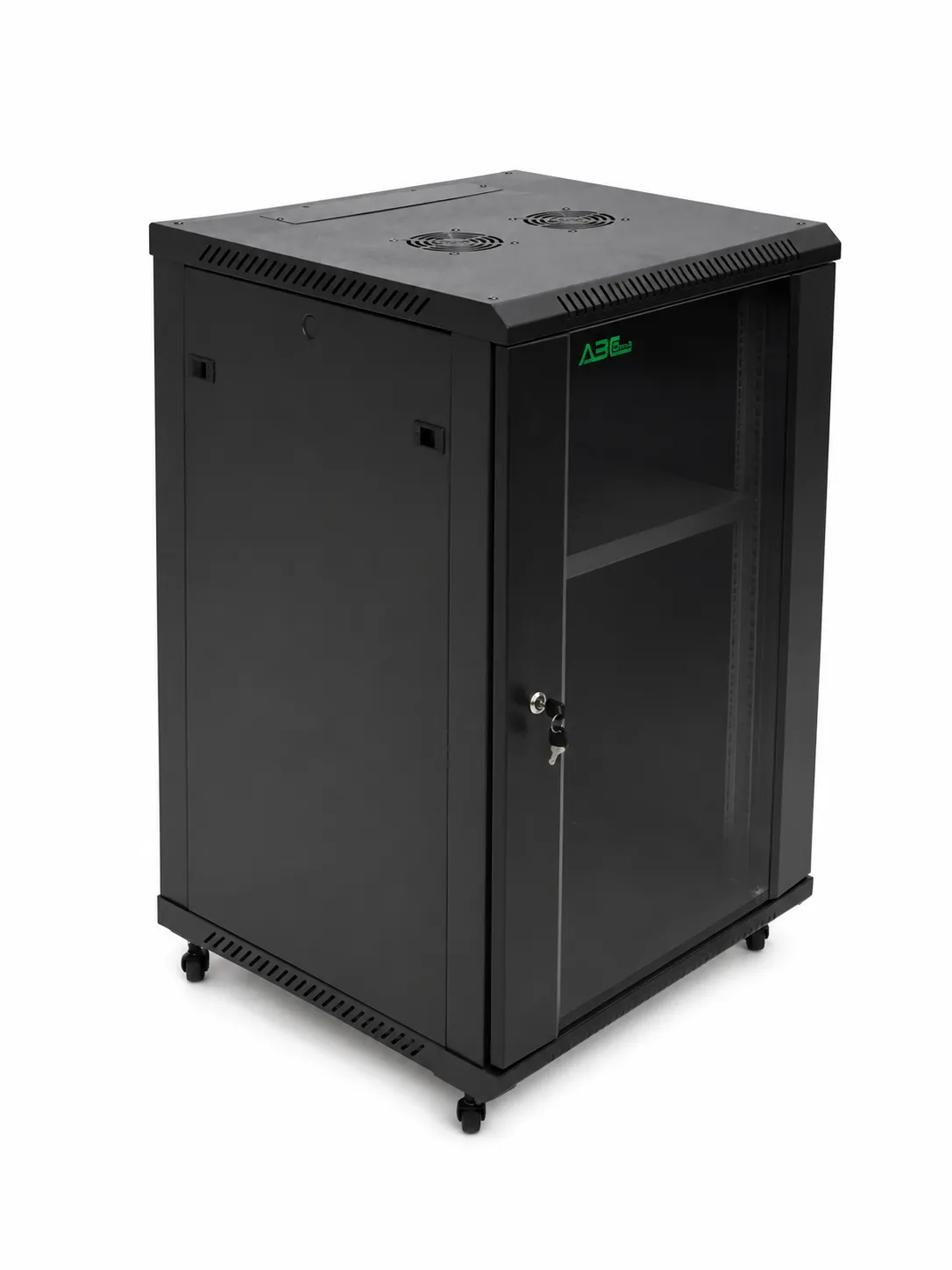

For equipment visibility and security, the front door is made of 3 mm smoked safety tempered glass equipped with a key lock. The cabinet also features a solid steel rear panel and two removable side door panels for easy maintenance access. Designed to meet strict international industry criteria, it complies with ANSI/EIA, IEC, DIN, and ETSI standards. It ships disassembled.
Model & Dimensions
| Model No. | Capacity | Width (mm) | Depth (mm) | Height (mm) |
| ABC-18U-60-60G | 18U | 600 | 600 | 988 |
Technical Specifications & Standard Features
Build & Materials
- Type: Floor Standing Network Cabinet
- Material: High-grade cold-rolled steel
- Steel Thickness: Mounting profile: 1.5 mm; other components: 1.2 mm
- Max Loading Capacity: 75 KG
- Protection Rating: IP 20
- Body Color: RA9004 Black
- Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting, and epoxy powder coating
Structure & Doors
- Main Structure Components: Frame, side panels, cable entry cover, mounting profiles, front door, and lock
- Front Door: 3 mm tempered safety glass (ESG), colored, equipped with a key lock
- Side Doors: 2 Side door panels

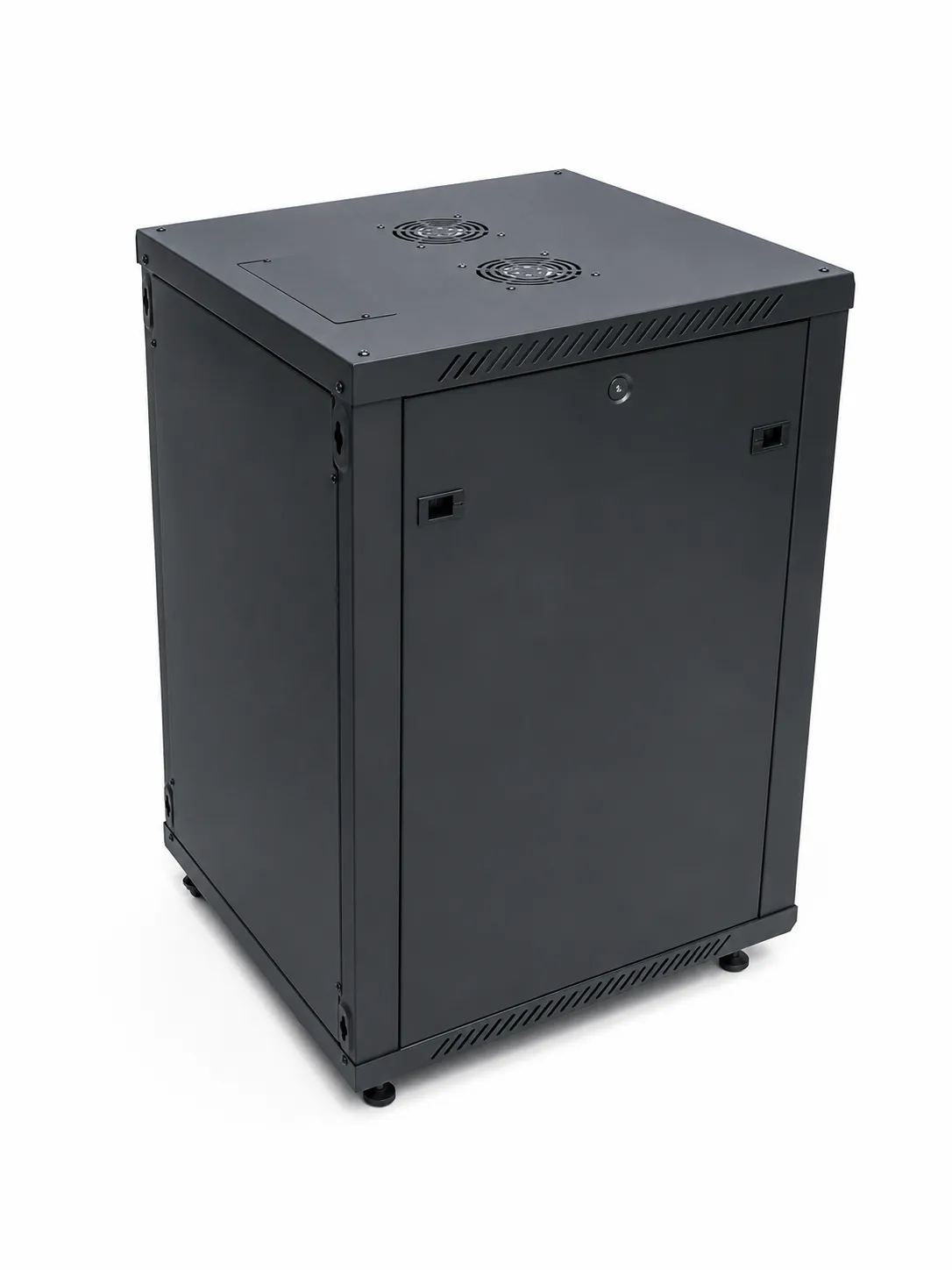

- Rear Panel: Steel rear panel

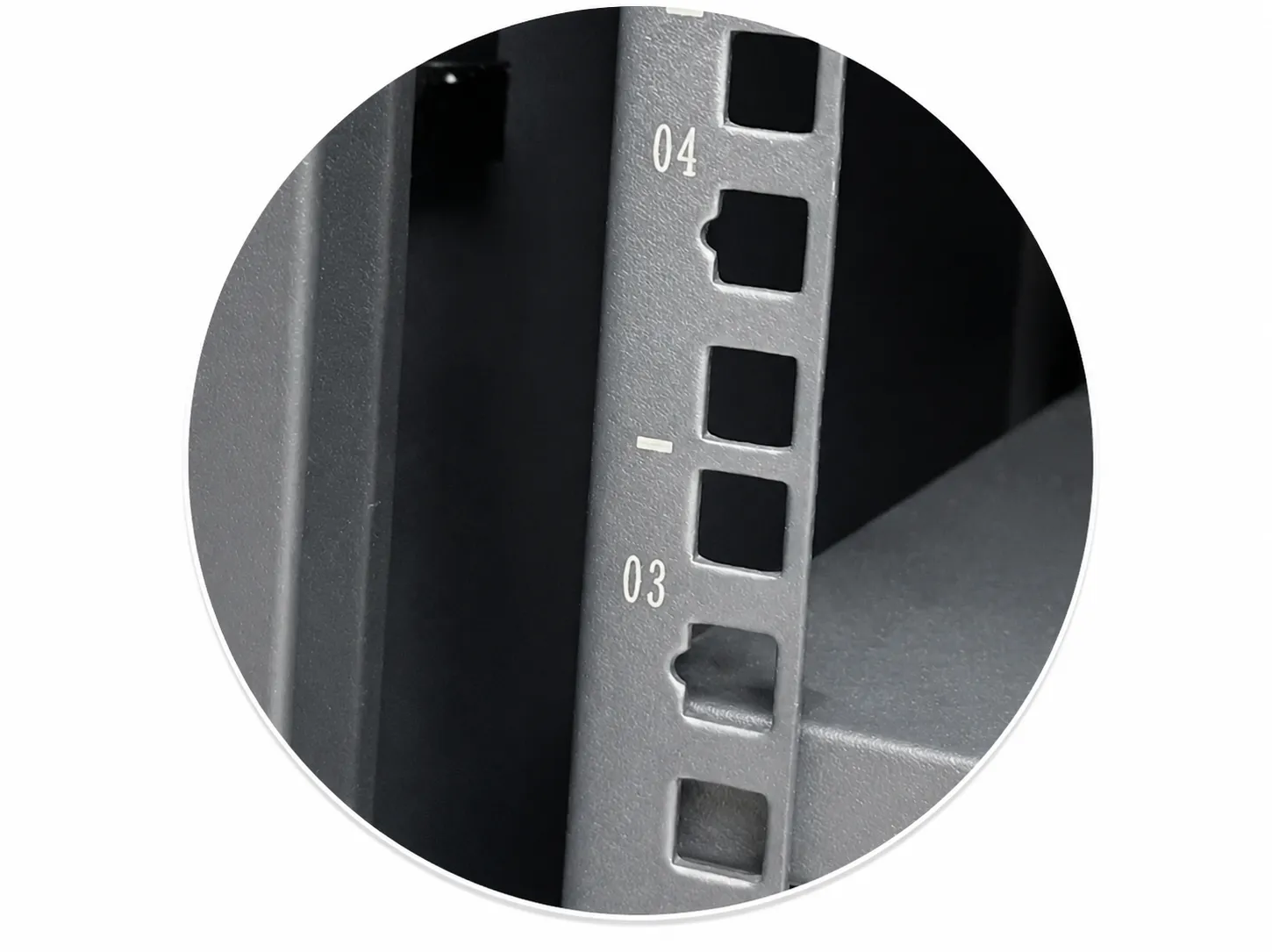

- Mounting Profiles: 4 Panel mount rails featuring unit (U) height indications
Included Accessories
- Cooling System: two 4 inch low-noise fans integrated into the panel.

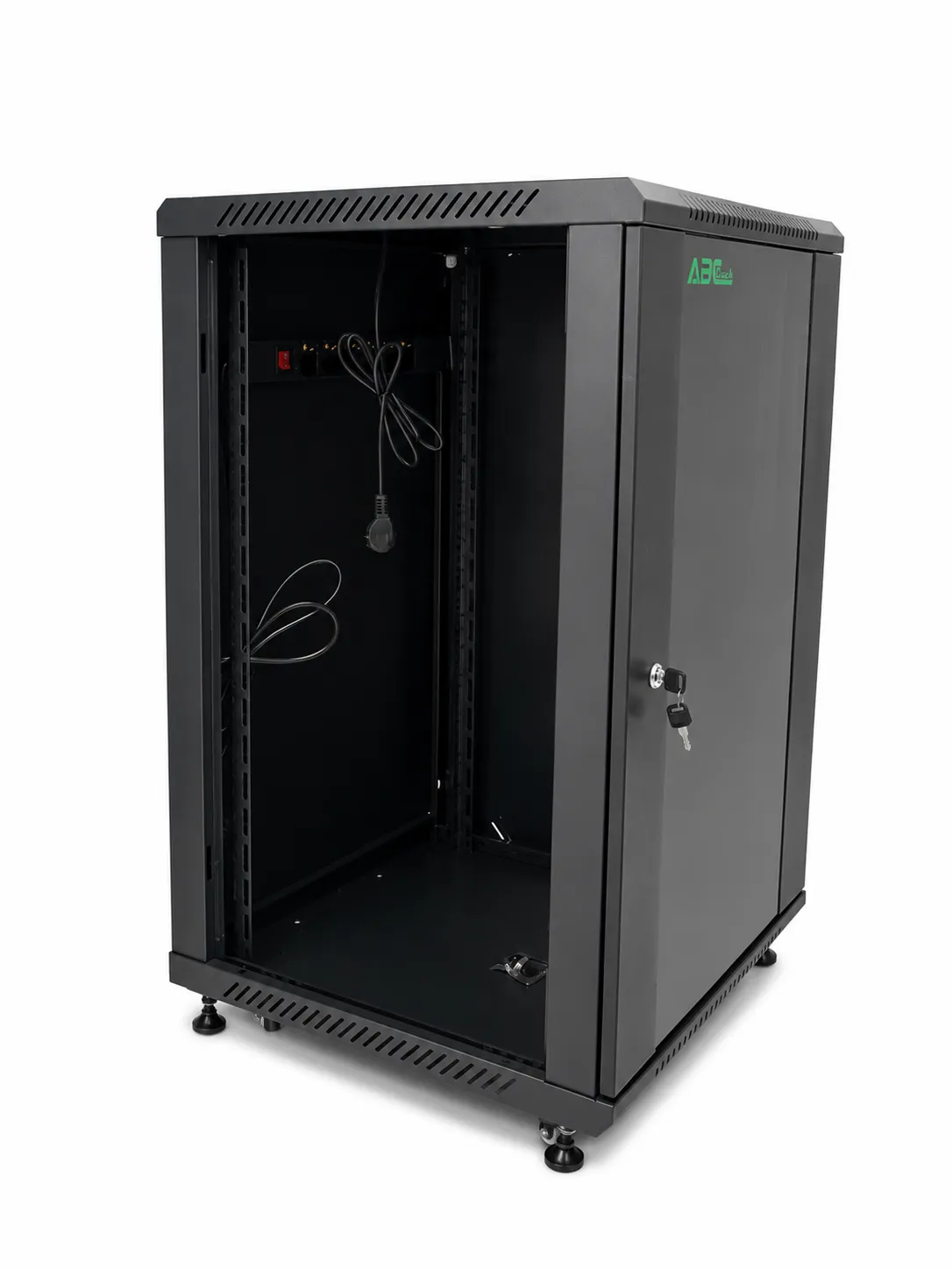

- Power Distribution: 19″ Horizontal Germany-type 6-way Power Distribution Unit (PDU)
- Fixed shelf
- 1 packet of M6 cage nuts (Size: M6)
- Small round lock
- Leveling feet, and four casters equipped with brakes.
Industry Standards
- Compliance: Fully complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (PART 1), DIN41494 (PART 7), and ETSI standards.
Shipping Condition
- Packing: Dis-assembled.
