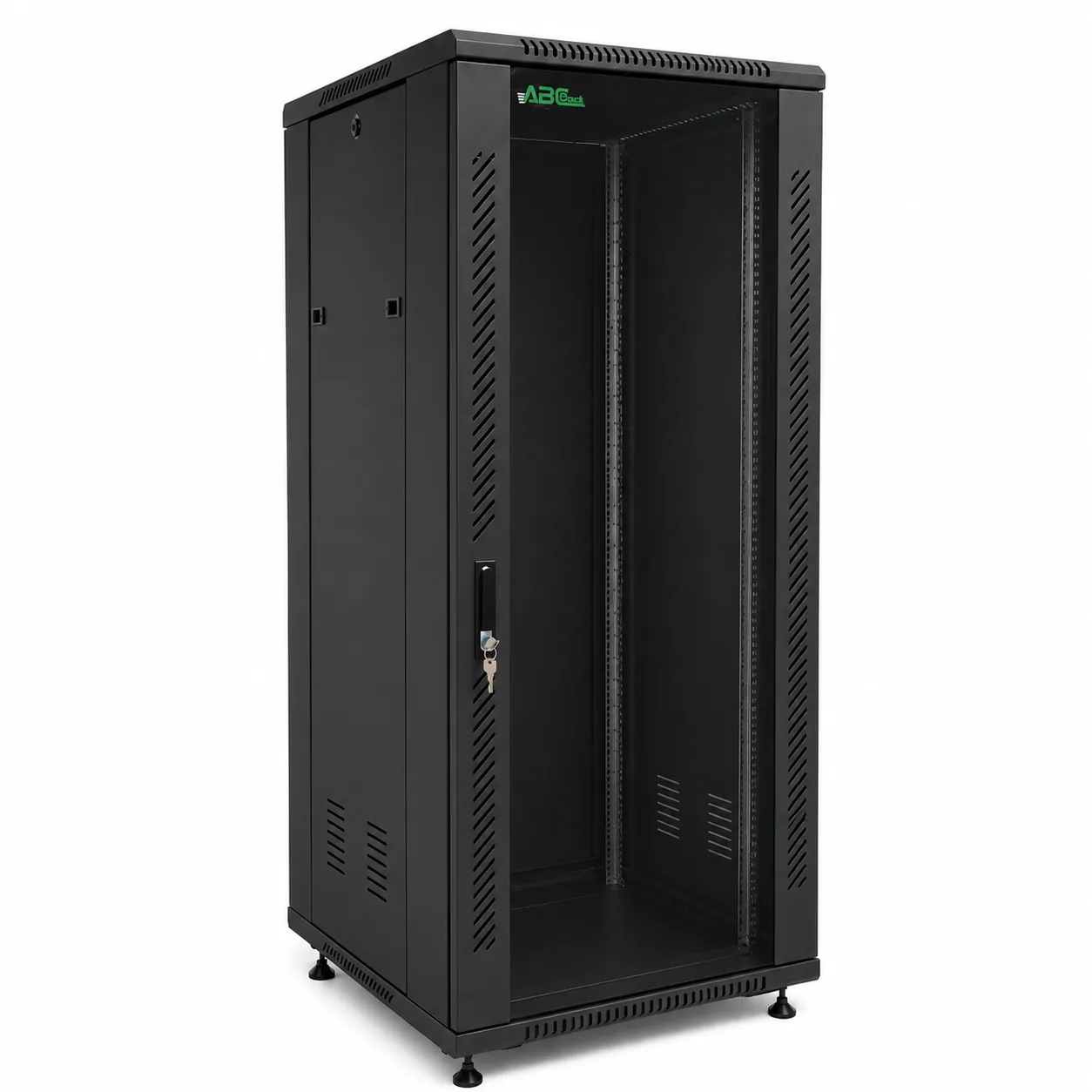

The 27U floor-standing network cabinets are one of the sizes in the ABC Rack floor standing network cabinet series, specially designed for medium and large-sized networks with a vertical height of 1388 mm.

For equipment visibility and security, the front door is made of 3 mm smoked safety tempered glass equipped with a key lock. The cabinet also features a solid steel rear panel and two removable side door panels for easy maintenance access. Designed to meet strict international industry criteria, it complies with ANSI/EIA, IEC, DIN, and ETSI standards. It ships disassembled.

Model & Dimensions

Technical Specifications & Standard Features

Build & Materials

• Type: Floor Standing Network Cabinet
• Material: High-grade cold-rolled steel
• Steel Thickness: Mounting profile: 2.0 mm; other components: 1.5mm and 1.2 mm Protection Rating: IP 20
• Body Color: RA9004 Black
• Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting, and epoxy powder coating

Structure & Doors

• Main Structure Components: Frame, side panels, cable entry cover, mounting profiles, front door, and lock
• Front Door: 3 mm tempered safety glass (ESG), colored, equipped with a key lock
• Side Doors: 2 Side door panels

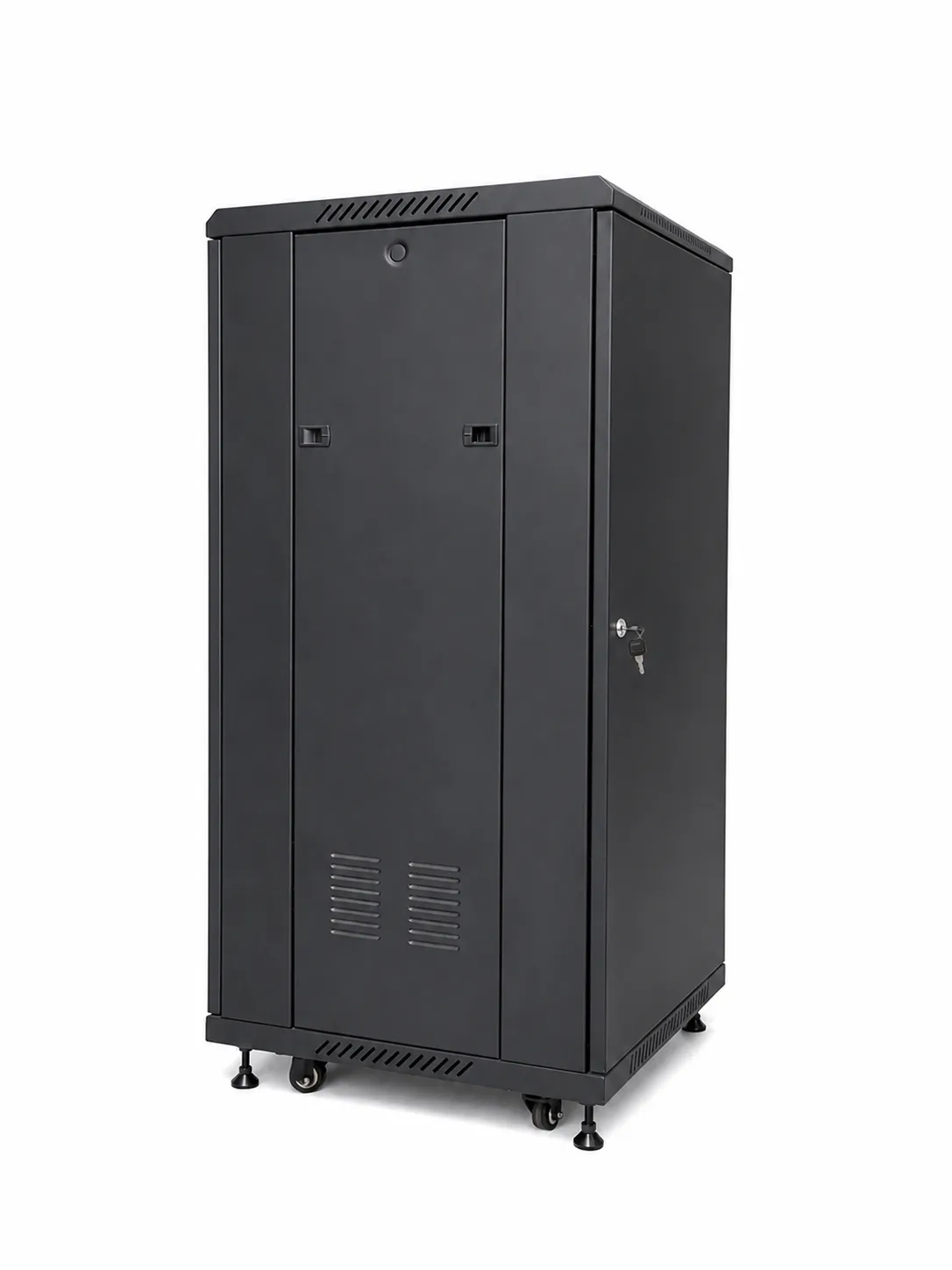

• Rear Panel: Steel rear door with a key lock

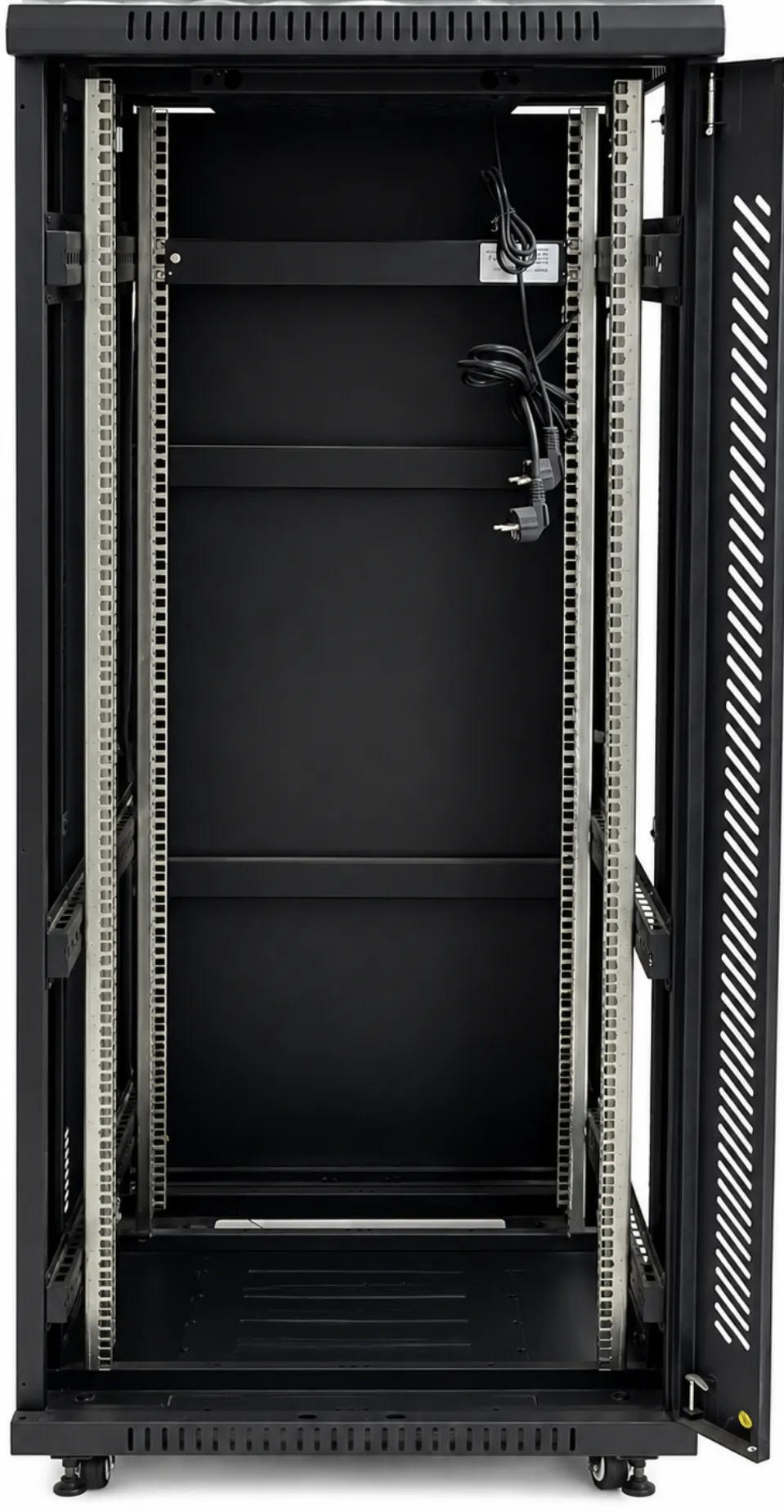

• Mounting Profiles: 4 Panel mount rails featuring unit (U) height indications
• Vertical Cable Organizer: models (ABC-27U-80-100G) provides 2 vertical cable organizers

Included Accessories

• Cooling System: includes 4 inch low-noise fans integrated into the panel.
• Power Distribution: 19″ Horizontal Germany-type 8-way Power Distribution Unit (PDU)
• Fixed shelf
• 1 packet of M6 cage nuts (Size: M6)
• Small round lock
• Leveling feet, and four casters equipped with brakes.

Industry Standards

• Compliance: Fully complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (PART 1), DIN41494 (PART 7), and ETSI standards.

Shipping Condition

Packing: Dis-assembled.
