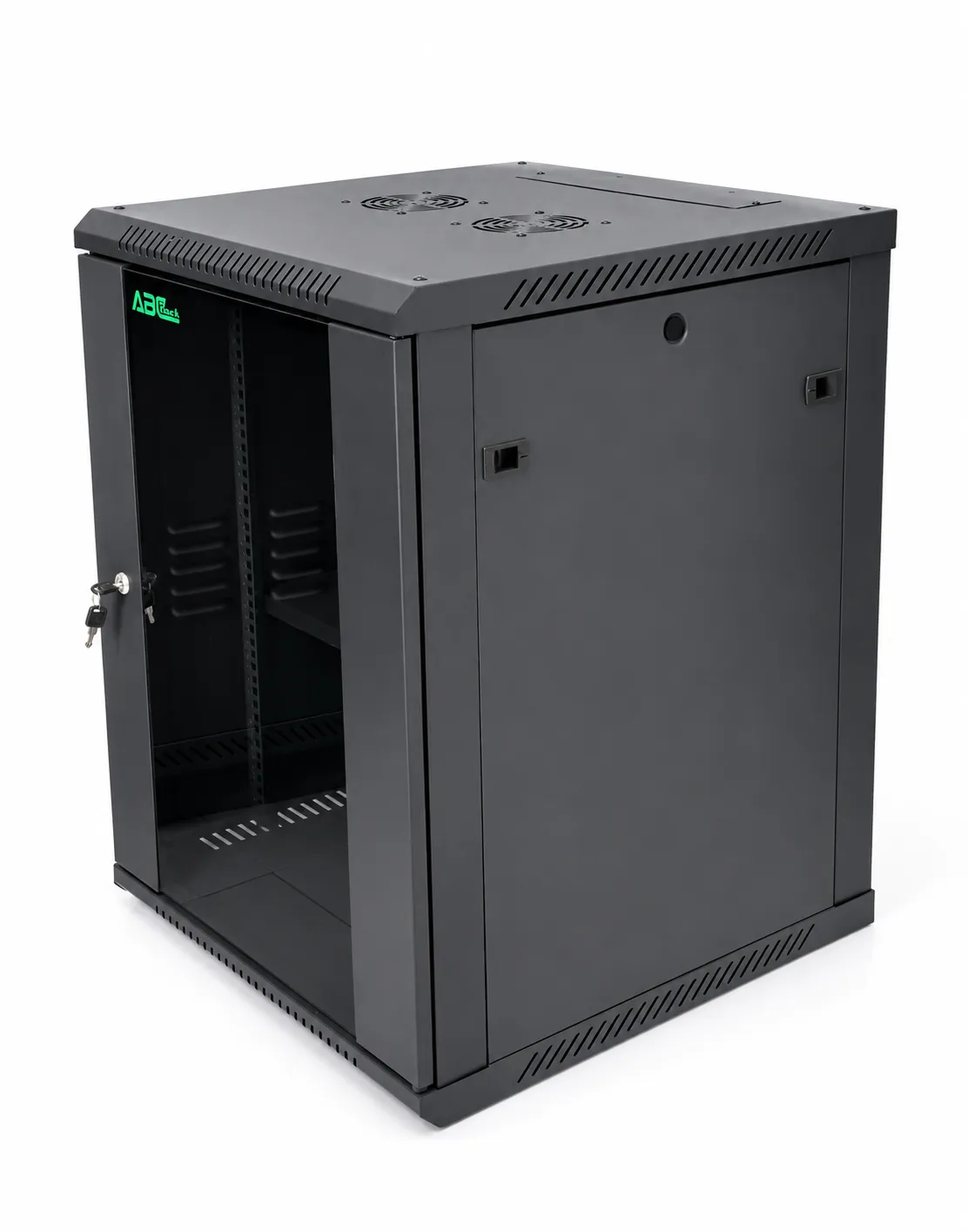

The 15U Wall Mount Network Cabinet Built from high-grade cold-rolled steel. This size is available configuration: depth 600 mm (Model ABC-15U-60-60G).

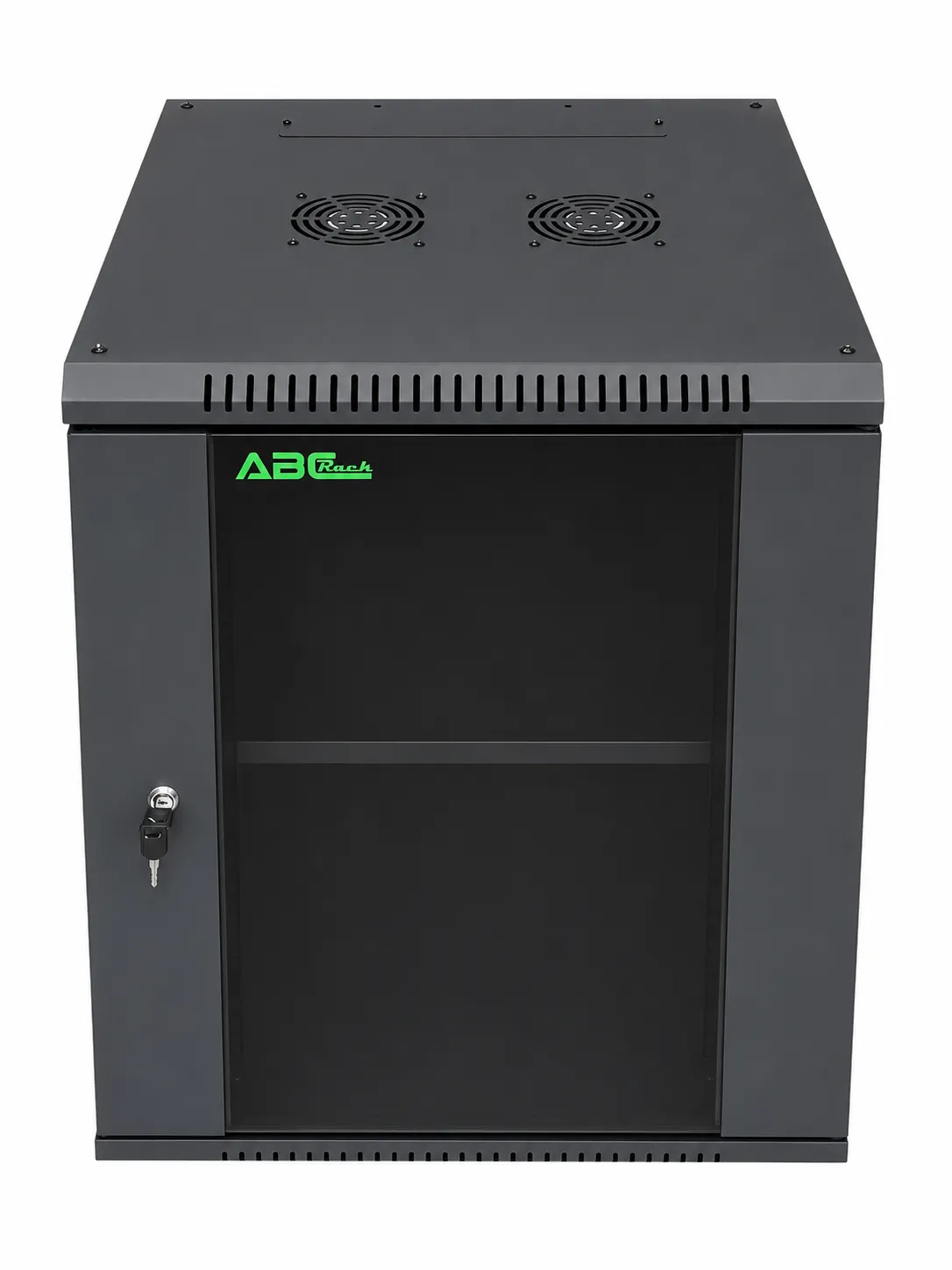

For equipment visibility and security, the front door is made of 3 mm tinted tempered safety glass equipped with a key lock. The cabinet also features a solid steel rear panel and two removable side door panels for easy maintenance access. Designed to meet strict international industry criteria, it complies with ANSI/EIA, IEC, DIN, and ETSI standards. It ships disassembled.
Model & Dimensions
| Model | Capacity | Width | Depth | Height |
| ABC-15U-60-60G | 15U | 600 mm | 600 mm | 769 mm |
Technical Specifications & Standard Features
Build & Materials
- Type: Wall Mount Equipment Cabinet
- Material: High-grade cold-rolled steel
- Steel Thickness: Mounting profile: 1.5 mm; other components: 1.2 mm
- Max Loading Capacity: 75 KG
- Protection Rating: IP 20
- Body Color: RA9004 Black
- Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting, and epoxy powder coating
Structure & Doors
- Main Structure Components: Frame, side panels, cable entry cover, mounting profiles, front door, and lock
- Front Door: 3 mm tempered safety glass (ESG), colored, equipped with a key lock

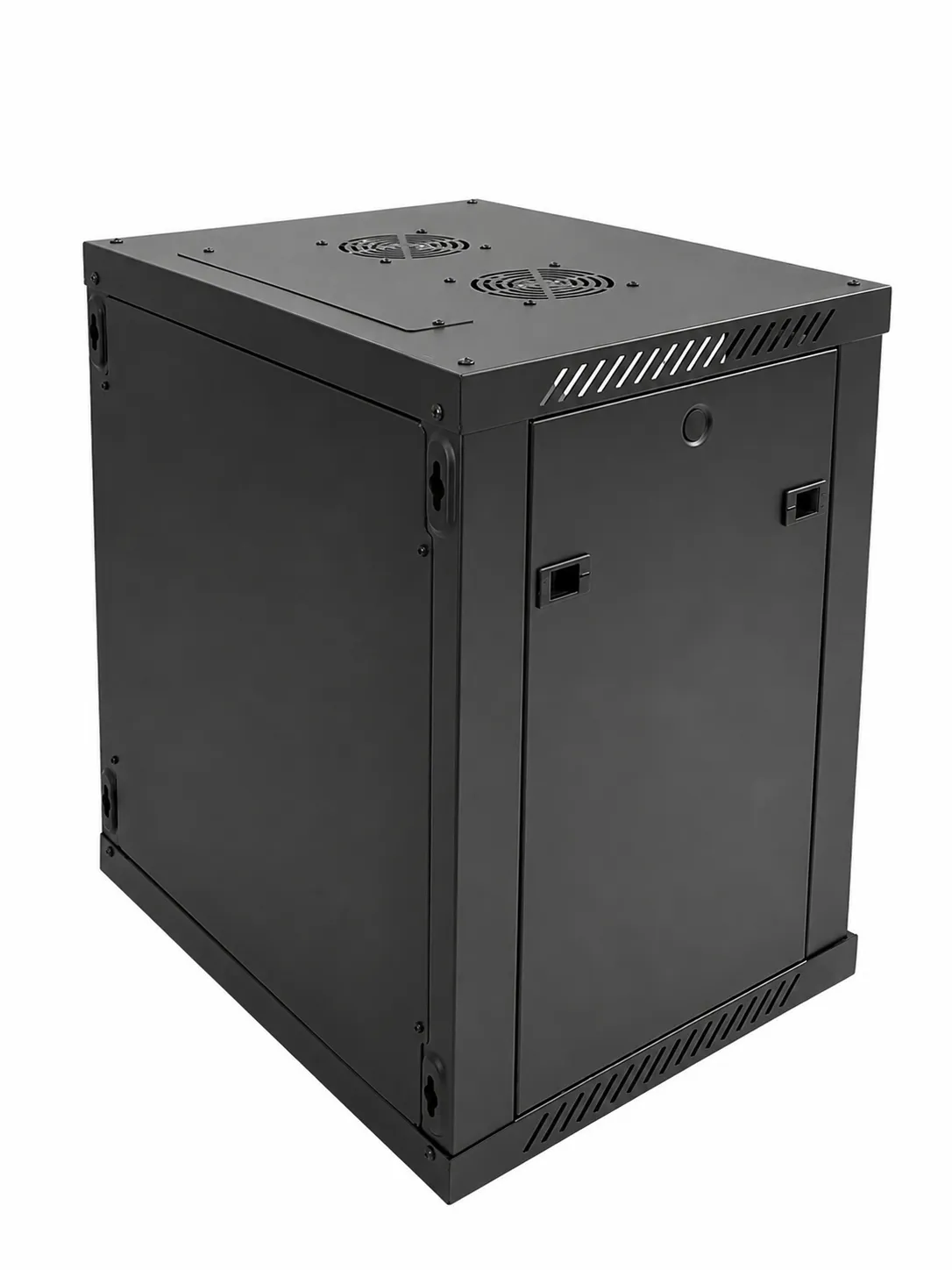

- Side Doors: 2 Side door panels
- Rear Panel: Steel rear panel

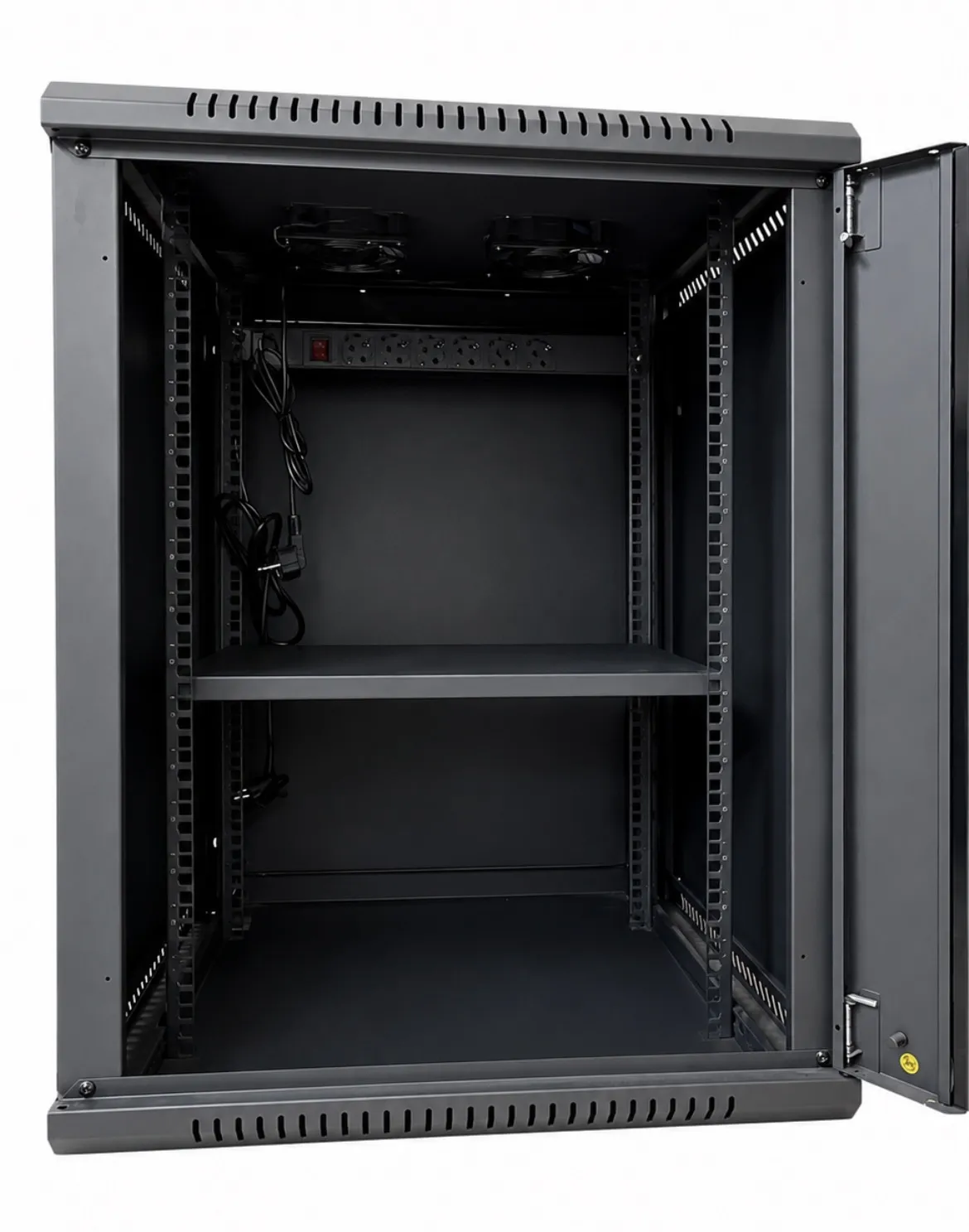

- Mounting Profiles: 4 Panel mount rails featuring unit (U) height indications
Included Accessories & Hardware
- Cooling System: two 4 inch low-noise fans integrated into the panel.
- Power Distribution: 19″ Horizontal Germany-type 6-way Power Distribution Unit (power strip)
- Shelving: Fixed shelf
- packet of M6 cage nuts (Size: M6)
- Small round lock
Industry Standards
- Compliance: Fully complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (PART 1), DIN41494 (PART 7), and ETSI standards.
Shipping Condition
- Packing: Dis-assembled.
