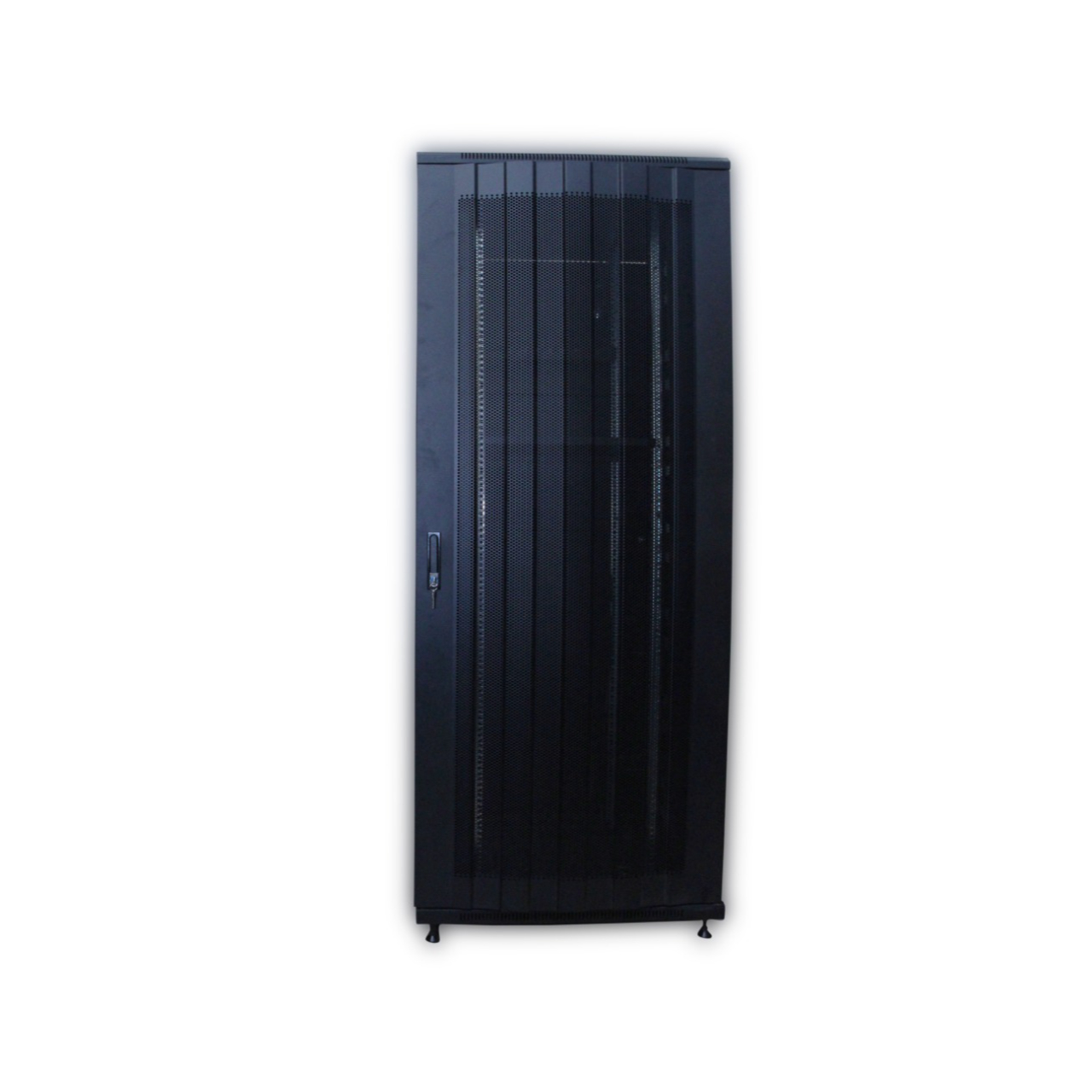

The 42U floor-standing server and network cabinets from the ABC Rack series represent the industry-standard full-size configuration for enterprise data centers, corporate server rooms, and structured cabling hubs. Standing at a dominant vertical profile height of 2055 mm, these cabinets are specifically optimized for maximum vertical space utilization, housing large-scale network infrastructures and high-density computing clusters.

Mechanical Design & Structural Integrity

• Frame Architecture: Fabricated entirely from premium-grade cold-rolled steel, utilizing a 2.00 mm thick mounting profile to withstand high stress, paired with 1.2–1.5 mm thick panels for structural body framing.
• Load Rating: Structurally certified to support a massive maximum static load capacity of 1000 KG, securely handling dense arrays of enterprise blade servers, heavy storage shelves, and large uninterruptible power supplies (UPS).
• Surface Treatment: Finished using an industrial multi-stage chemical treatment process consisting of degreasing, acid pickling, rust prevention, Parkerizing, pure water cleaning, and an electrostatic powder coating. Available in standard RAL9004 Black or RAL7035 Grey.
• Ingress Protection: Built to IP 20 specifications, ensuring structural safety against solid objects greater than 12.5 mm while promoting excellent open ventilation across internal components.

Thermal Management & Door Configurations

• Server Enclosure Profile: Outfitted with front and rear high-density vented steel doors incorporating a large hexagon honeycomb pattern (4 mm diameter holes), achieving an exceptional airflow ventilation rate of over 80% to facilitate optimal heat dissipation across hot-running active server chassis.

Cable Management & Core Accessories

• Routing Entry & Seals: Features integrated, pre-fabricated cable entry routing zones at both the top cover and bottom base plates, accommodating dense bundles of copper or fiber optic trunks cleanly.
• Standard Integration Package: Every unit comes standard with a high-capacity 4-fan tray assembly built into the top cover for active heat extraction, 1 fixed equipment shelf, a heavy-duty cage nut hardware kit ($M6\times16$), adjustable leveling feet, and dual side-break 1.5″ castors for easy positioning and movement.
• Power Distribution: Equipped with a standard 19″ horizontally mounted 8-way Germany-type Power Distribution Unit (PDU) complete with an illuminated master power switch.

Model Matrix & Dimensional Configurations

The 42U series introduces both standard width (600 mm) and wide-body (800 mm) chassis to handle massive vertical cable management demands:

Add-On Smart Infrastructure (Pre-Order Option)

For critical deployments requiring precise environmental telemetry, the 42U cabinets can be pre-ordered with an integrated Environmental Monitoring System. This setup incorporates digital LED control boards, real-time thermal sensors, and automatic variable fan-speed regulators, alongside internal workspace lighting to assist technical staff during physical hardware maintenance.
