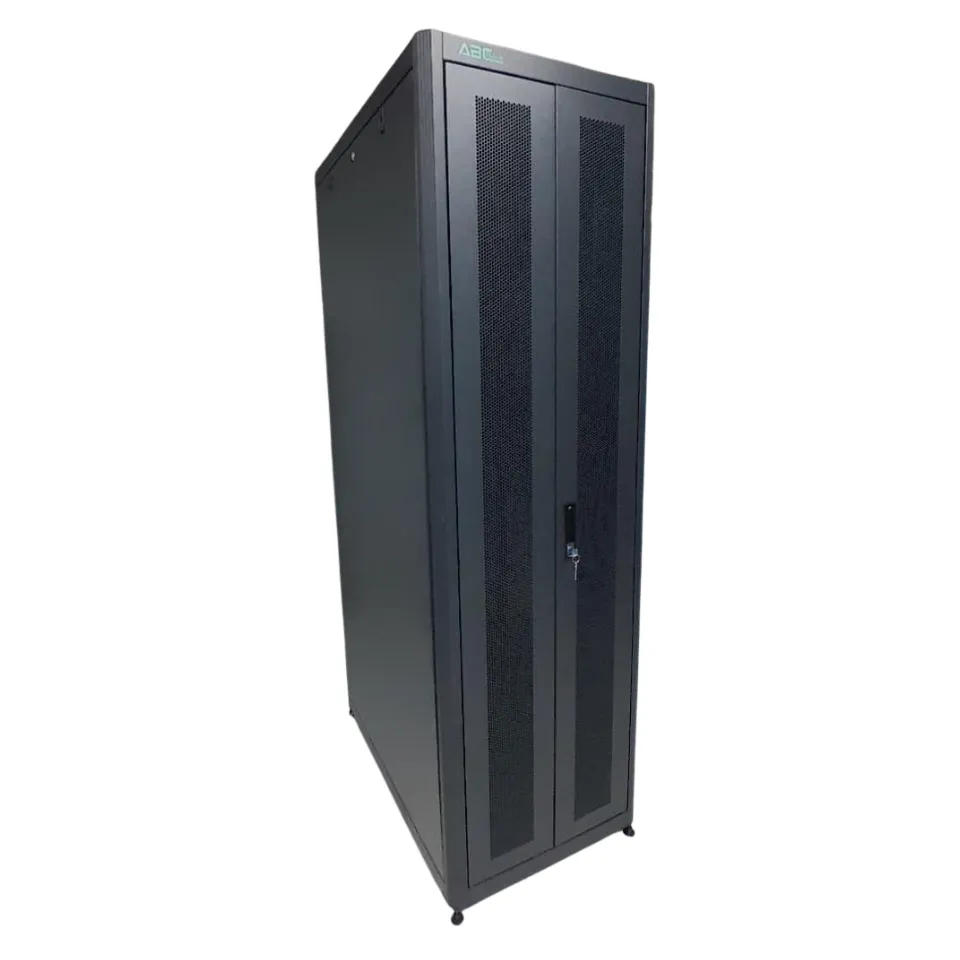

The 36U floor-standing server and network cabinets from the ABC Rack series are engineered for high-density, mid-to-high capacity deployments where maximizing standard rack space is critical but a full 42U cabinet is too tall for structural or room clearances. Standing at a fixed vertical profile height of 1773 mm, these units provide extensive mounting space for enterprise network backbones, extensive patch layouts, and heavy server infrastructure.

Mechanical Design & Structural Integrity

• Frame Architecture: Constructed completely from premium-grade cold-rolled steel, featuring a robust 2.00 mm thick mounting profile for secure equipment fastening, paired with 1.2–1.5 mm thick panels for structural body framing.
• Load Rating: Structurally certified to support a maximum static load capacity of 1000 KG, allowing for dense integration of heavy networking hardware, enterprise switches, storage shelves, and high-capacity UPS systems.
• Surface Treatment: Finished using an industrial multi-stage chemical treatment process consisting of degreasing, acid pickling, rust prevention, Parkerizing, pure water cleaning, and an electrostatic powder coating. Available in standard RAL9004 Black or RAL7035 Grey.
• Ingress Protection: Built to IP 20 specifications, ensuring structural safety against solid objects greater than 12.5 mm while promoting excellent open ventilation across internal components.

Thermal Management & Door Configurations

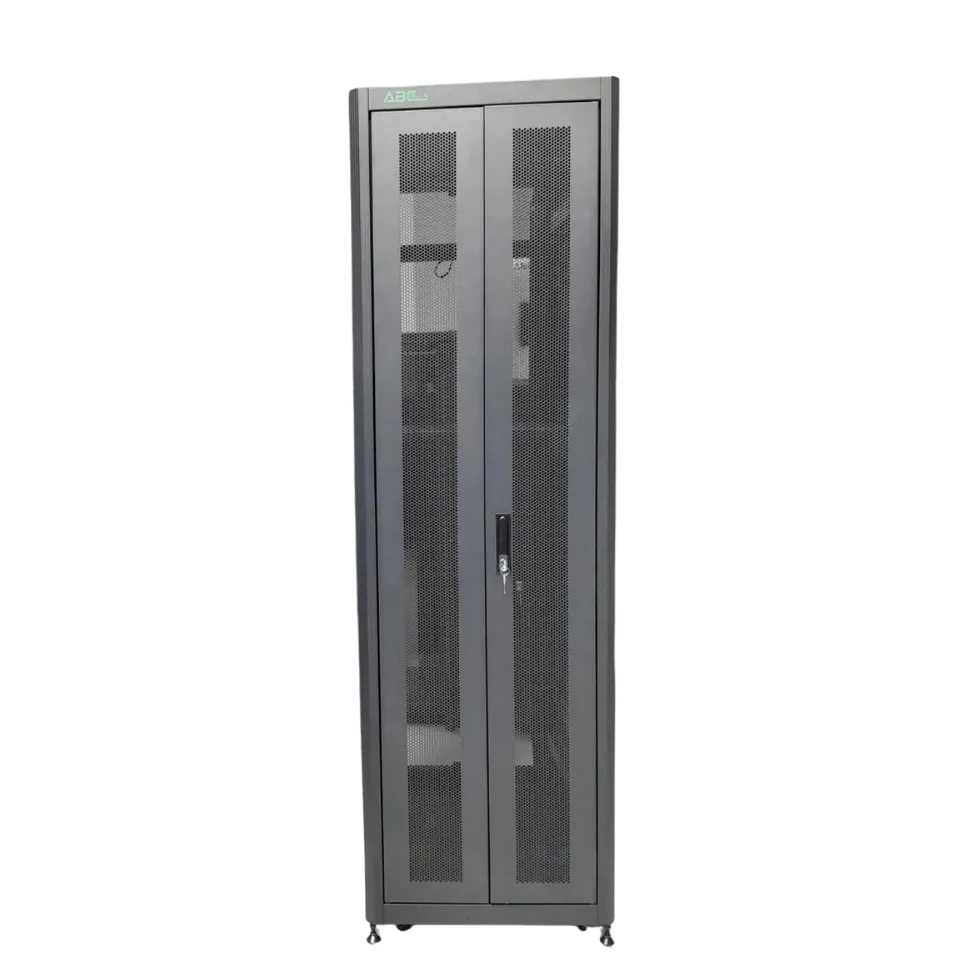

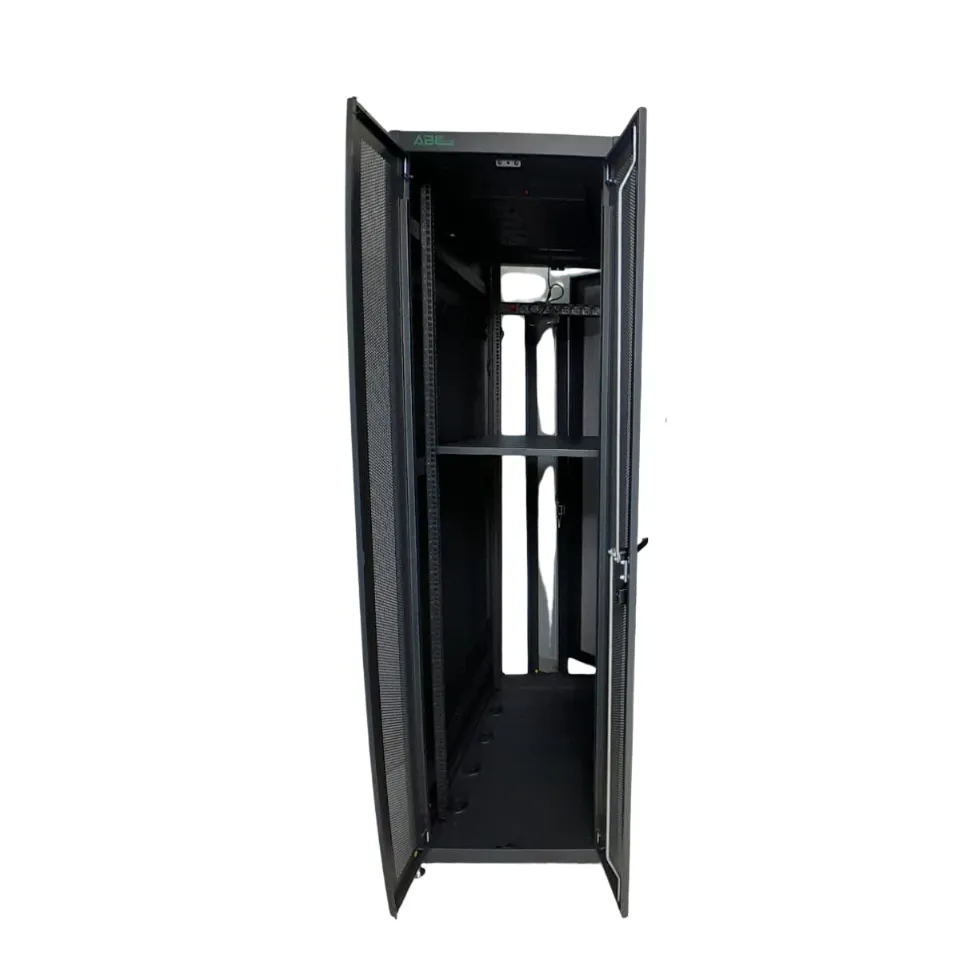

• Server Enclosure Profile: Outfitted with front and rear high-density vented steel doors incorporating a large hexagon honeycomb pattern (4 mm diameter holes), achieving an exceptional airflow ventilation rate of over 80% to facilitate optimal heat dissipation across hot-running active server chassis.

Cable Management & Core Accessories

• Routing Entry & Seals: Features integrated, pre-fabricated cable entry routing zones at both the top cover and bottom base plates, accommodating dense bundles of copper or fiber optic trunks cleanly.
• Standard Integration Package: Every unit comes standard with a high-capacity 4-fan tray assembly built into the top cover for active heat extraction, 1 fixed equipment shelf, a heavy-duty cage nut hardware kit ($M6\times16$), adjustable leveling feet, and dual side-break 1.5″ castors for easy positioning and movement.

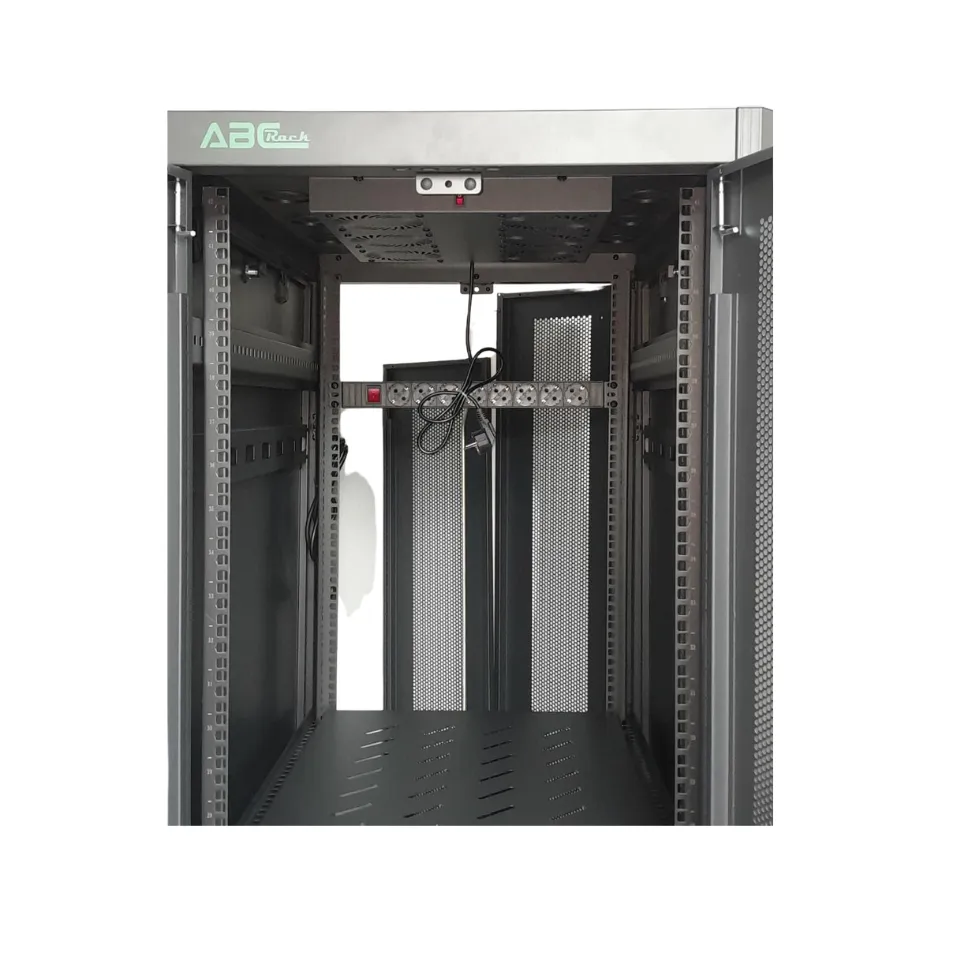

• Power Distribution: Equipped with a standard 19″ horizontally mounted 8-way Germany-type Power Distribution Unit (PDU) complete with an illuminated master power switch.

Model Matrix & Dimensional Configurations

The 36U series introduces both standard width (600 mm) and wide-body (800 mm) chassis to handle massive vertical cable management demands:

Add-On Smart Infrastructure (Pre-Order Option)

For critical deployments requiring precise environmental telemetry, the 36U cabinets can be pre-ordered with an integrated Environmental Monitoring System. This setup incorporates digital LED control boards, real-time thermal sensors, and automatic variable fan-speed regulators, alongside internal workspace lighting to assist technical staff during physical hardware maintenance.
