The 47U floor-standing server and network cabinets represent the ultimate capacity tier from the ABC Rack series, engineered for high-density enterprise data centers, massive cloud infrastructure setups, and main telecom distribution frames. Standing at a maximum profile height of 2277 mm, these ultra-tall cabinets maximize vertical real estate to accommodate extensive rows of active blade servers, complex storage arrays, and heavy network switch backbones.

Mechanical Design & Structural Integrity

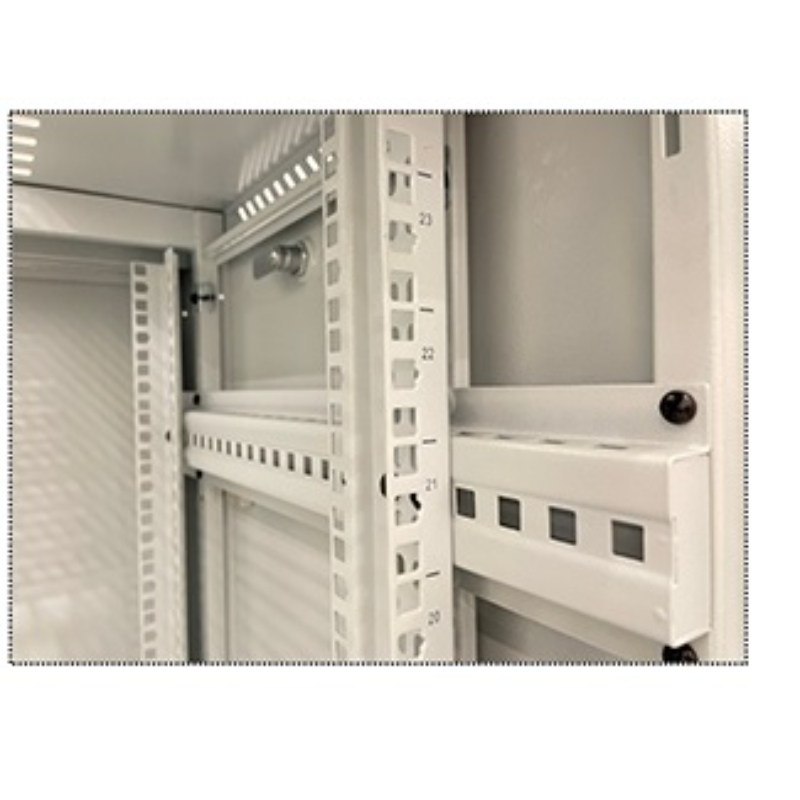

• Frame Architecture: Constructed entirely from industrial-grade, cold-rolled steel. It features heavy-duty 2.00 mm thick mounting profiles to resist twisting under load, combined with 1.2–1.5 mm thick panels for structural body framing.
• Load Rating: Certified to support a maximum static load capacity of 1000 KG, securely handling top-tier, heavy deployment configurations.
• Surface Coating: Finished via an industrial multi-stage chemical treatment process consisting of degreasing, acid pickling, rust prevention, Parkerizing, pure water cleaning, and an electrostatic powder coating. Available in standard RAL9004 Black or RAL7035 Grey.
• Ingress Protection: Built to IP 20 specifications, ensuring structural safety against solid objects greater than 12.5 mm while promoting excellent open ventilation across internal components.

Thermal Management & Door Configurations

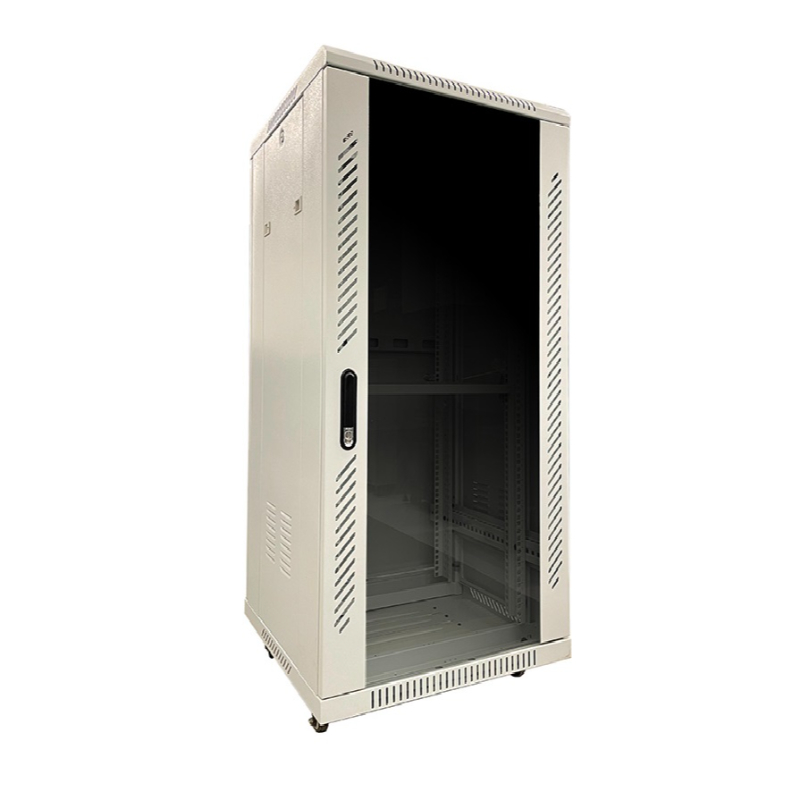

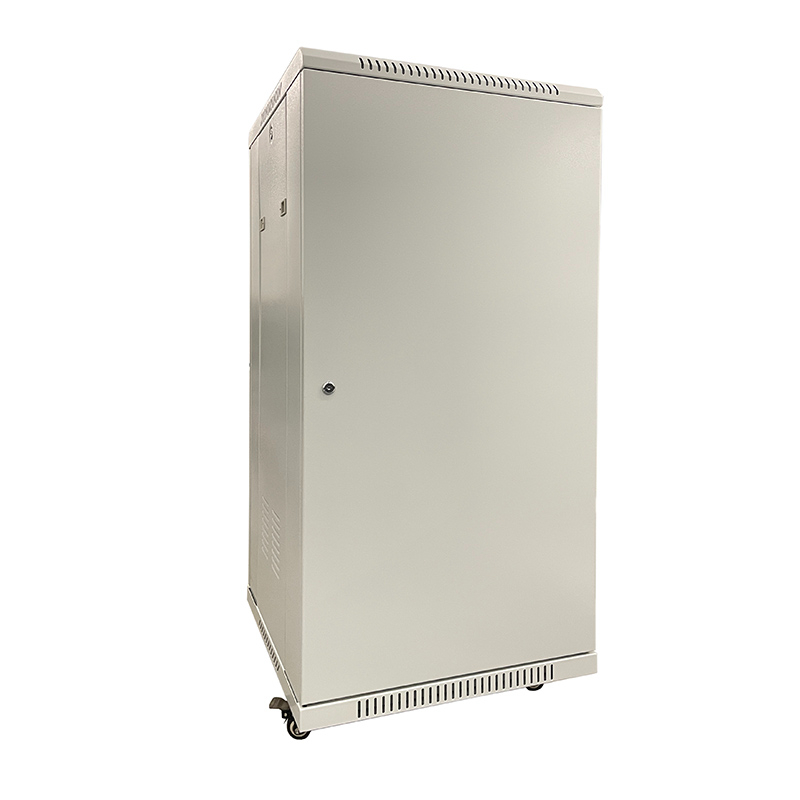

• Network Enclosure Profile: Outfitted with a lockable front door made from 3 mm thick Tempered Safety Glass (ESG) and a solid steel rear door, offering immediate visual monitoring while protecting patch cabling arrays against dust and unverified physical access.

Cable Management & Core Accessories

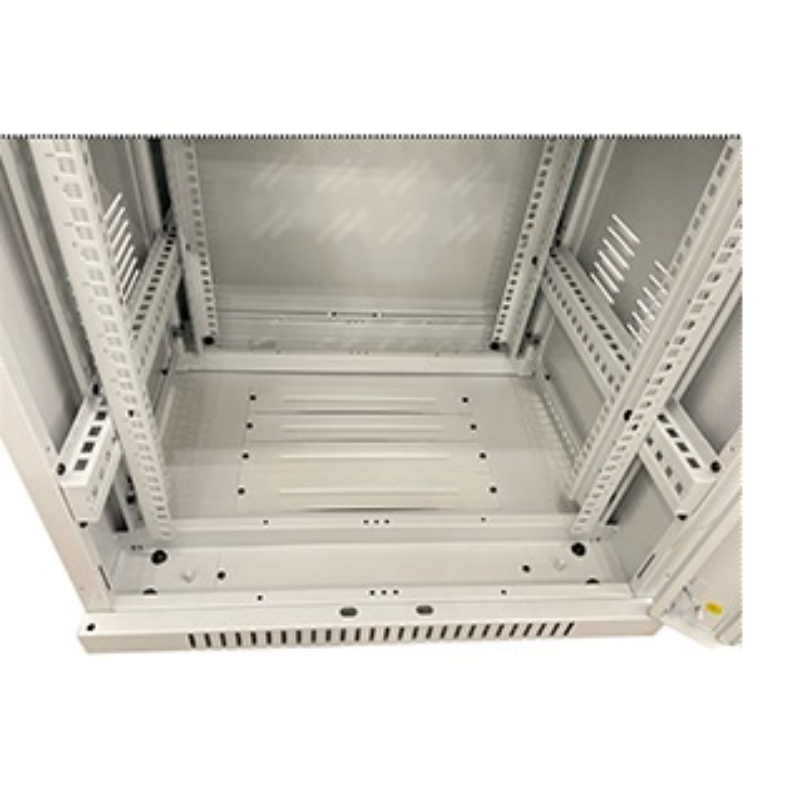

• Routing Entry & Seals: Features integrated, pre-fabricated cable entry routing zones at both the top cover and bottom base plates, accommodating dense bundles of copper or fiber optic trunks cleanly.

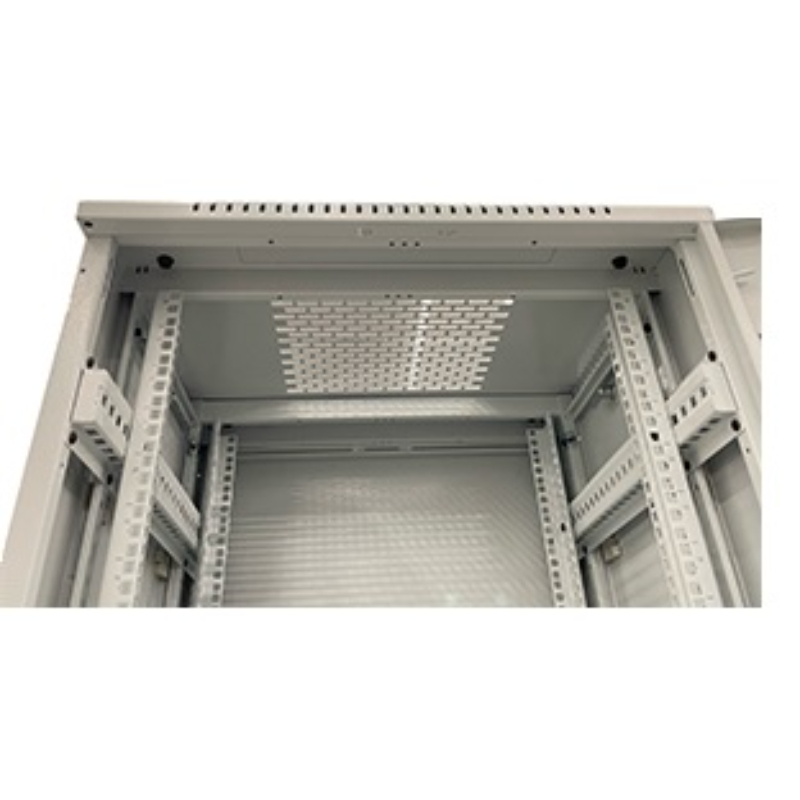

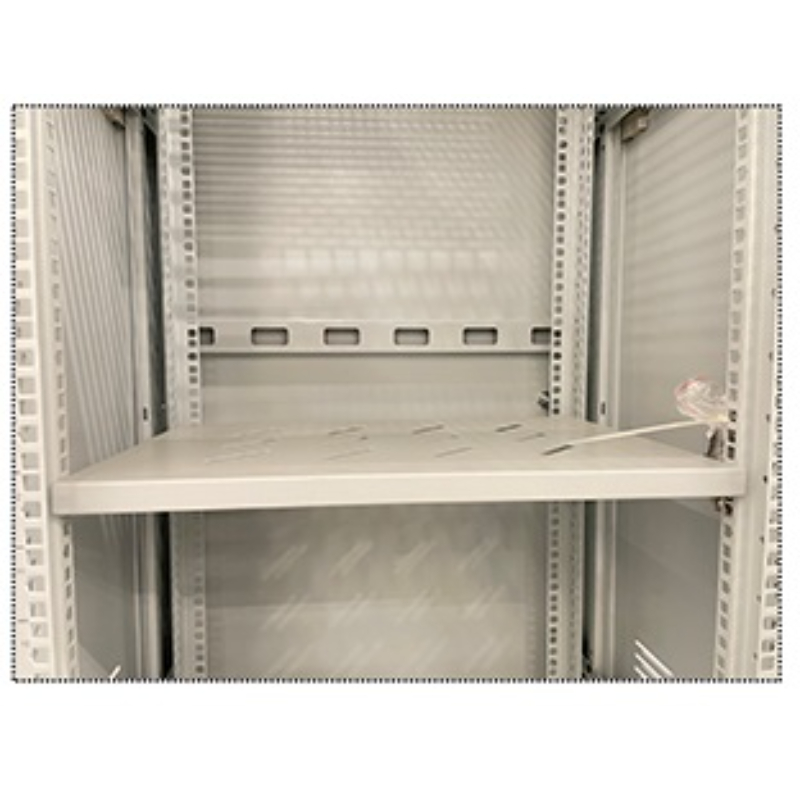

• Standard Integration Package: Every unit comes standard with a high-capacity 4-fan tray assembly built into the top cover for active heat extraction, 1 fixed equipment shelf, a heavy-duty cage nut hardware kit ($M6\times16$), adjustable leveling feet, and dual side-break 1.5″ castors for easy positioning and movement.
• Power Distribution: Equipped with a standard 19″ horizontally mounted 8-way Germany-type Power Distribution Unit (PDU) complete with an illuminated master power switch.

Model Matrix & Dimensional Configurations

The 47U series is split into standard width (600 mm) and wide-body (800 mm) chassis variants:

Add-On Smart Infrastructure (Pre-Order Option)

For setups requiring precise environmental telemetry, these cabinets can be pre-ordered with an integrated Environmental Monitoring System. This setup incorporates digital LED control boards, real-time thermal sensors, and automatic variable fan-speed regulators, alongside internal workspace lighting to assist technical staff during physical hardware maintenance.
